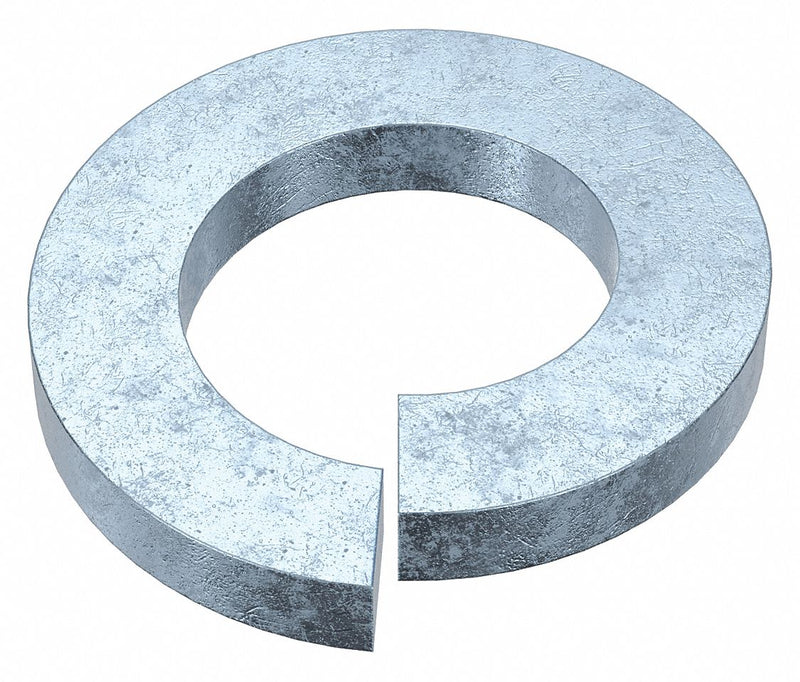

Approved Vendor M37020.160.0001 Split Lock Washer, Case Hardened, Zinc Plated, Steel, M16 Screw Sz, 17 mm Max. Inside Dia, 25 PK

Approved Vendor M37020.160.0001 Split Lock Washer, Case Hardened, Zinc Plated, Steel, M16 Screw Sz, 17 mm Max. Inside Dia, 25 PK

UPC: | Harmonization / Schedule B : 7318.21.0030

Country of Origin: | Shipping Weight: 0.491 lbs

$4.44 - $4.44
$4.44
$4.44 - $4.44
$4.44

Split Lock Washer, Standard, Steel, Finish Zinc, Fits Bolt Sizes M16, Inside Dia. 16.2mm, Outside Dia. 27.4mm, Thickness 3.5mm, Rockwell Hardness C44 to C51, Meets/Exceeds D127B, Package Quantity 25

For Screw Size M16
Outside Diameter 27.4 mm
Minimum Thickness 3.50 mm
Maximum Thickness 3.5 mm
Inside Diameter 16.2 mm
Outside Diameter Tolerance +/-0.254 mm
Inside Diameter Tolerance +/-0.127 mm
Inside Diameter - Maximum 17 mm
Outside Diameter - Maximum 27.4 mm
Minimum Inside Diameter 16.2 mm
MFR # M37020.160.0001
Zoro # G5334165
UPC # -
Country of Origin Multiple
CAD Available Yes
Material Steel
Finish Zinc Plated
Standards D127B
System of Measurement Metric
Material Grade/Class Not Graded
Rockwell Hardness C44
Color Silver
Thickness Tolerance +/-0.127 mm
Manufacturer Location Globally Sourced
Made in North America Not Made in North America
Pack Size Small Pack
Maximum Temperature 275 Degrees F
Removable Removable
Lock Washer Type Split Lock
Material Quality Standards ASTM A307A, SAE J429
Minimum Temperature 10 Degrees F
Dimensional Standards DIN 127 B
Type Split Lock Washer
Washer Type Regular
Hardness 44 HRC
Country of Origin Varies (subject to change)
