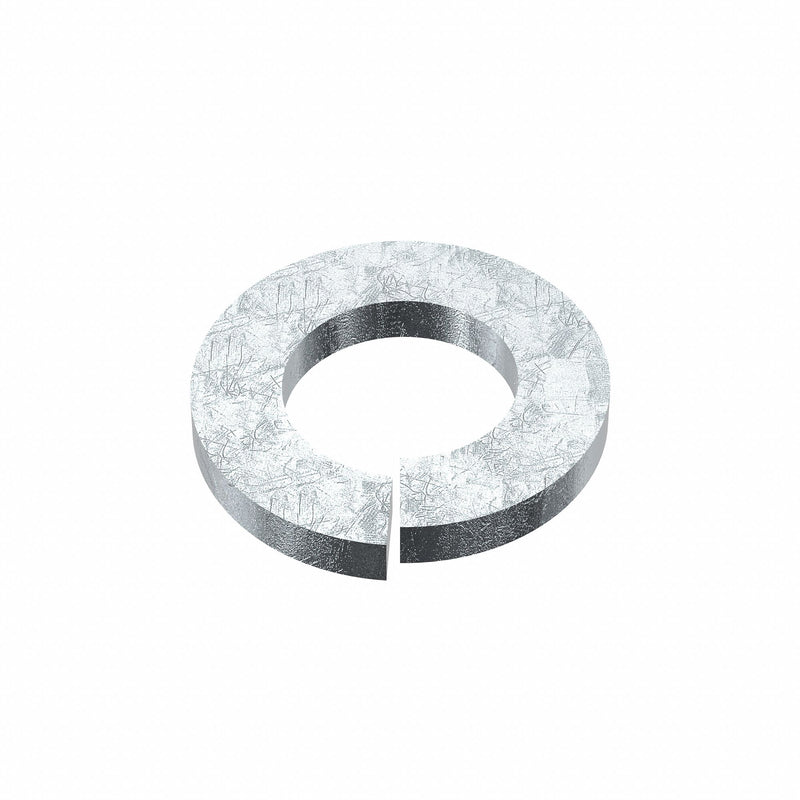

Approved Vendor M37020.100.0001 Split Lock Washer, Case Hardened, Zinc Plated, Steel, M10 Screw Sz, 10.7 mm Max. Inside Dia, 100 PK

Approved Vendor M37020.100.0001 Split Lock Washer, Case Hardened, Zinc Plated, Steel, M10 Screw Sz, 10.7 mm Max. Inside Dia, 100 PK

UPC: | Harmonization / Schedule B : 7318.21.0030

Country of Origin: | Shipping Weight: 0.558 lbs

$5.17 - $5.17
$5.17
$5.17 - $5.17
$5.17

Split Lock Washer, Standard, Carbon Steel, Finish Zinc, Fits Bolt Sizes M10, Inside Dia. 10.2mm, Outside Dia. 18.1mm, Thickness 2.2mm, Thickness Tolerance +/-0.15mm, Rockwell Hardness C44 to C51, General Purpose, Meets/Exceeds DIN 127B, Refills -, Package Quantity 100

For Screw Size M10
Outside Diameter 18.1 mm
Minimum Thickness 2.20 mm
Maximum Thickness 2.2 mm
Inside Diameter 10.2 mm
Inside Diameter Tolerance +/-0.127 mm
Outside Diameter Tolerance +/-0.254 mm
Inside Diameter - Maximum 10.7 mm
Outside Diameter - Maximum 18.1 mm
Minimum Inside Diameter 10.2 mm
MFR # M37020.100.0001
Zoro # G3295031
UPC # -
Country of Origin Multiple
CAD Available Yes
Material Steel
Finish Zinc Plated
Standards DIN 127 B
System of Measurement Metric
Material Grade/Class Not Graded
Application General Purpose
Thickness Tolerance +/-0.15 mm
Rockwell Hardness C44
Color Silver
Pack Size Small Pack
Removable Removable
Minimum Temperature 10 Degrees F
Manufacturer Location Globally Sourced
Made in North America Not Made in North America
Lock Washer Type Split Lock
Maximum Temperature 275 Degrees F
Material Quality Standards ASTM A307A, SAE J429
Dimensional Standards DIN 127 B
Type Split Lock Washer
Hardness 44 HRC
Washer Type Regular
Country of Origin Varies (subject to change)
