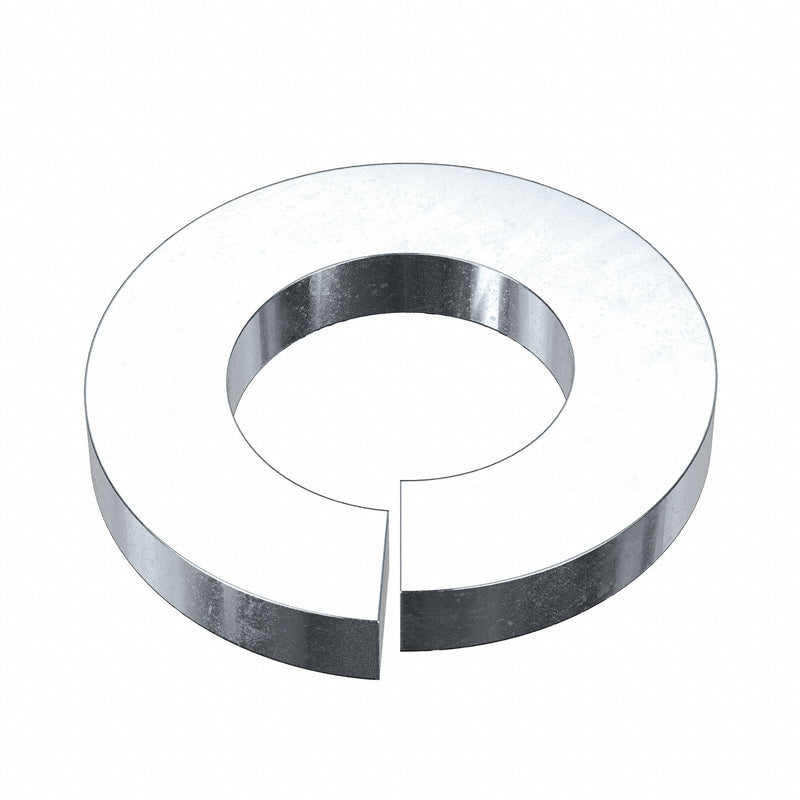

Approved Vendor M37020.080.0001 Split Lock Washer, Case Hardened, Zinc Plated, Steel, M8 Screw Sz, 8.5 mm Max. Inside Dia, 100 PK

Approved Vendor M37020.080.0001 Split Lock Washer, Case Hardened, Zinc Plated, Steel, M8 Screw Sz, 8.5 mm Max. Inside Dia, 100 PK

UPC: | Harmonization / Schedule B : 7318.21.0030

Country of Origin: | Shipping Weight: 0.353 lbs

$3.75 - $3.75
$3.75
$3.75 - $3.75
$3.75

Split Lock Washer, Standard, Carbon Steel, Finish Zinc, Fits Bolt Sizes M8, Inside Dia. 8.1mm, Outside Dia. 14.8mm, Thickness 2mm, Thickness Tolerance +/-0.10mm, Rockwell Hardness C44 to C51, General Purpose, Meets/Exceeds DIN 127B, Refills -, Package Quantity 100

For Screw Size M8
Outside Diameter 14.8 mm
Minimum Thickness 2 mm
Maximum Thickness 2 mm
Inside Diameter 8.1 mm
Outside Diameter Tolerance +/-0.254 mm
Inside Diameter Tolerance +/-0.127 mm
Inside Diameter - Maximum 8.5 mm
Minimum Inside Diameter 8.1 mm
Outside Diameter - Maximum 14.8 mm
MFR # M37020.080.0001
Zoro # G1455431
UPC # -
Country of Origin Multiple
CAD Available Yes
Material Steel
Finish Zinc Plated
Standards DIN 127B
System of Measurement Metric
Material Grade/Class Not Graded
Thickness Tolerance +/-0.1 mm
Application General Purpose
Rockwell Hardness C44
Color Silver
Maximum Temperature 275 Degrees F
Lock Washer Type Split Lock
Manufacturer Location Globally Sourced
Minimum Temperature 10 Degrees F
Material Quality Standards ASTM A307A, SAE J429
Pack Size Small Pack
Made in North America Not Made in North America
Removable Removable
Dimensional Standards DIN 127 B
Washer Type Regular
Hardness 44 HRC
Type Split Lock Washer
Country of Origin Varies (subject to change)
