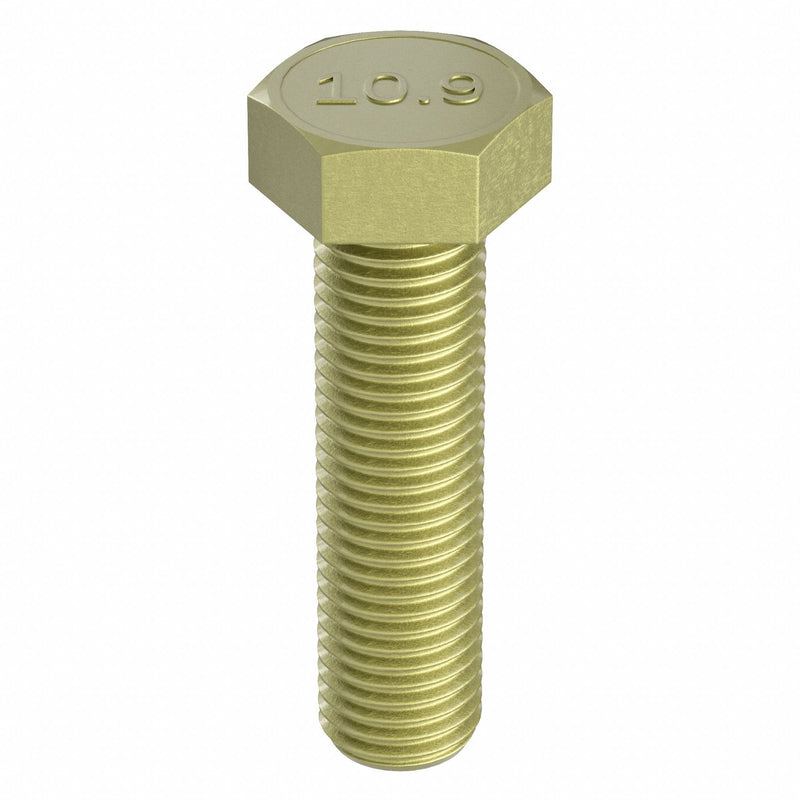

Approved Vendor M04114.200.0060 Hex Head Cap Screw, Steel, Class 10.9, Zinc Yellow, M20x2.50, Coarse, 60 mm lg, Metric, 10 PK
UPC: | Harmonization / Schedule B : 7318.15.8066
Country of Origin: | Shipping Weight: 4.321 lbs
UPC: | Harmonization / Schedule B : 7318.15.8066
Country of Origin: | Shipping Weight: 4.321 lbs
The ZORO SELECT - M04114.200.0060 is a Hex Head Cap Screw, a type of fastener characterized by its hexagonal-shaped head. This screw adheres to the DIN 933 Dimensional Standards and requires an external hex drive for installation or removal. Made from steel with a zinc yellow finish, this globally sourced product is designed to securely join together materials in various industrial applications. Dimensional Standards: Meets DIN 933 standards for use in various industrial applications. Drive: Requires an external hex drive for application, such as a wrench or socket of the same shape. Finish: Zinc Yellow finish is intended to provide a level of corrosion resistance. Material: Made from steel which determines strength, durability and suitability for various industrial applications. Globally Sourced: Procured from international manufacturers offering diverse range of quality and price options. Tensile Strength: Rated for up to 150,800 psi tensile stress under laboratory conditions. Thread Direction & Size: Right hand thread direction tightens clockwise; Thread size M20-2.50 designed for use with corresponding nuts or holes
| Thread Size | M20-2.50 |
|---|---|
| Fastener Length | 60 mm |
| Head Width | 30 mm |
| Head Height | 12.5 mm |
| Min. Thread Length | 60 mm |
| Head and Washer Height | 12.5 mm |
| Minimum Thread Length | 60 mm |
| Screw Size | M20 |
| Overall Length | 60 mm |
| Wire Rope Length | 60 mm |
| Length | 60 mm |
| System of Measurement | Metric |
| Drive | External Hex |
| Material Grade/Class | Class 10.9 |
| Material | Steel |
| Finish | Zinc Yellow |
| Thread Style | Fully Threaded |
| Thread Direction | Right Hand |
| Standards | DIN 933 |
| Fastener Finish | Zinc Yellow |
| Thread Type | Coarse |
| Proof Load | 940 N/sq mm |
| Rockwell Hardness | HRC32 |
| Screw Industry Standards | DIN 933 |
| Tensile Strength | 150,800 psi |
| Globally Sourced | Globally Sourced |
| Threadlocker Minimum Temperature | M20-2.50 |
| Dimensional Standards | DIN 933 |
| Threadlocker Maximum Temperature | 2.5 mm |
| Manufacturer Location | Globally Sourced |
| Type | Hex Head Cap Screw |
| Drive Type | External Hex |
| Head Type | Hex |
| Country of Origin | Multiple |
