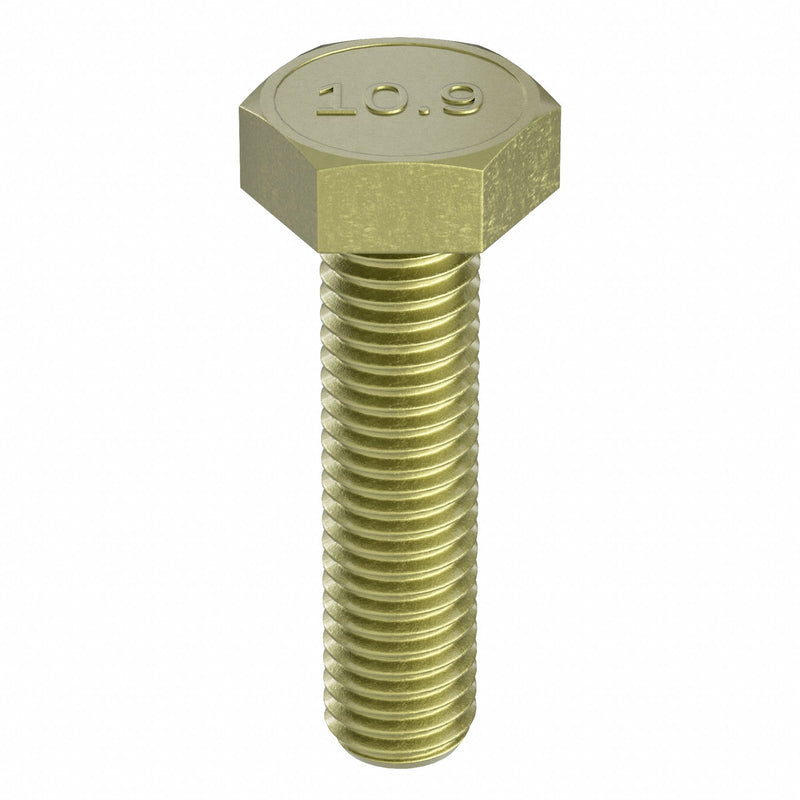

Approved Vendor M04114.200.0040 Hex Head Cap Screw, Steel, Class 10.9, Zinc Yellow, M20x2.50, Coarse, 40 mm lg, Metric, 10 PK

Approved Vendor M04114.200.0040 Hex Head Cap Screw, Steel, Class 10.9, Zinc Yellow, M20x2.50, Coarse, 40 mm lg, Metric, 10 PK

UPC: | Harmonization / Schedule B : 7318.15.8066

Country of Origin: | Shipping Weight: 3.417 lbs

$24.71 - $24.71
$24.71
$24.71 - $24.71
$24.71

Hex Head Cap Screw, System of Measurement Metric, Basic Material Steel, Material Grade Class 10.9, Fastener Finish Zinc Yellow, Dia./Thread Size M20-2.50, Fastener Length 40 mm, Fastener Thread Direction Right Hand, Fastener Thread Type Metric Coarse, Fastener Thread Style Fully Threaded, Fastener Industry Standards DIN 933, Head Type Hex, Min. Thread Length 40 mm, Head Height 12.5 mm, Head Width 30 mm, Package Quantity 10

Thread Size M20-2.50
Fastener Length 40 mm
Head Width 30 mm
Head Height 12.5 mm
Min. Thread Length 40 mm
Head and Washer Height 12.5 mm
Screw Size M20
Minimum Thread Length 40 mm
Overall Length 40 mm
Wire Rope Length 40 mm
Length 40 mm
System of Measurement Metric
Drive External Hex
Material Grade/Class Class 10.9
Material Steel
Finish Zinc Yellow
Thread Style Fully Threaded
Thread Direction Right Hand
Standards DIN 933
Tensile Strength 150,800 psi
Rockwell Hardness HRC32
Fastener Finish Zinc Yellow
Thread Type Coarse
Screw Industry Standards DIN 933
Proof Load 940 N/sq mm
Threadlocker Maximum Temperature 2.5 mm
Globally Sourced Globally Sourced
Dimensional Standards DIN 933
Threadlocker Minimum Temperature M20-2.50
Manufacturer Location Globally Sourced
Type Hex Head Cap Screw
Drive Type External Hex
Head Type Hex
Country of Origin Multiple
