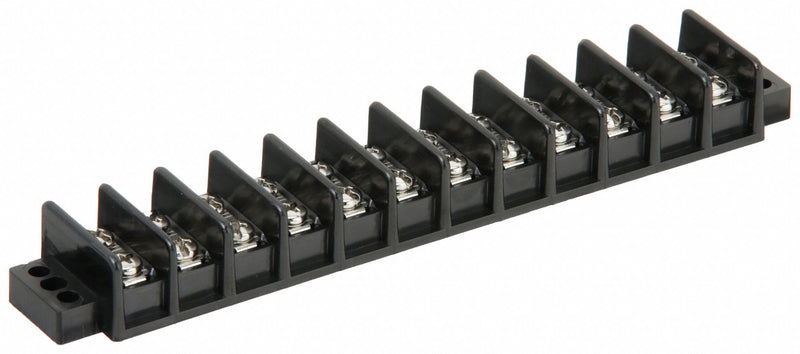

Approved Vendor 6YH68 Barrier Terminal Strip, 12 Poles, 22 AWG – 10 AWG For Wire Sizes, 30 A Max Current

Approved Vendor KV6YH68 Barrier Terminal Strip, 12 Poles, 22 AWG – 10 AWG For Wire Sizes, 30 A Max Current

UPC: 190735546949 | Harmonization / Schedule B : 8536.90.4000

Country of Origin: China | Shipping Weight: 0.35 lbs

$24.61 - $24.61
$24.61
$24.61 - $24.61
$24.61

Barrier Terminal Strip, Center Spacing 9/16 in, Current 30 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 10 AWG, Maximum Voltage 600 V, Number of Poles 12, Number of Rows 2, Overall Height 0.83 in, Overall Length 7.71 in, Overall Width 1.34 in, Compatible with Product Type Power Distribution Blocks, Cover Included No, Housing Color Black, Housing Material Thermal Plastic

For Minimum Wire Size 22 AWG
For Maximum Wire Size 10 AWG
Overall Length 7.71 in
Overall Width 1.34 in
Overall Height 0.83 in
Termination Screw Size #8-32
Wire Rope Length 7.71 in
Length 7.71 in
MFR # 6YH68
Zoro # G1976922
UPC # 190735546949
Country of Origin China
Number of Poles 12
Number of Rows 2
Termination Style Screw
Current 30 A
Maximum Voltage 600 V AC
Center Spacing 9/16 in
Voltage 600
Color Black
Material Thermal Plastic
Standards cRUus
Termination Screw Material Steel
Housing Material Thermal Plastic
Screw Type Phil-Slot
Mounting Style Bolt Down
Termination Screw Finish Nickel Plated
Minimum Operating Temperature -76 Degrees F
UL 94 Flammability Rating V-0
Terminal Material Copper
Maximum Operating Temperature 266 Degrees F
Torque 12 in-lb
RoHS Compliant Yes
Cover Included No
Compatible with Product Type Power Distribution Blocks
Housing Color Black
Country of Origin China (subject to change)
