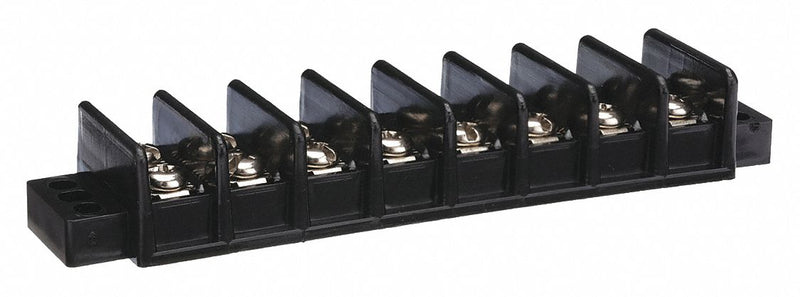

Approved Vendor 6YH66 Barrier Terminal Strip, 8 Poles, 22 AWG – 10 AWG For Wire Sizes, 30 A Max Current

Approved Vendor KV6YH66 Barrier Terminal Strip, 8 Poles, 22 AWG – 10 AWG For Wire Sizes, 30 A Max Current

UPC: 190735546932 | Harmonization / Schedule B : 8536.90.4000

Country of Origin: China | Shipping Weight: 0.2 lbs

$18.18 - $18.18
$18.18
$18.18 - $18.18
$18.18

Barrier Terminal Strip, Center Spacing 9/16 in, Current 30 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 10 AWG, Maximum Voltage 600 V, Number of Poles 8, Number of Rows 2, Overall Height 0.83 in, Overall Length 5.48 in, Overall Width 1.34 in, Compatible with Product Type Power Distribution Blocks, Cover Included No, Housing Color Black, Housing Material Thermal Plastic

For Minimum Wire Size 22 AWG
For Maximum Wire Size 10 AWG
Overall Length 5.48 in
Overall Width 1.34 in
Overall Height 0.83 in
Termination Screw Size #8-32
Wire Rope Length 5.48 in
Length 5.48 in
MFR # 6YH66
Zoro # G0325245
UPC # 190735546932
Country of Origin China
Number of Poles 8
Number of Rows 2
Termination Style Screw
Current 30 A
Maximum Voltage 600 V AC
Center Spacing 9/16 in
Voltage 600V AC
Material Thermal Plastic
Color Black
Standards cRUus
UL 94 Flammability Rating V-0
Mounting Style Bolt Down
Torque 12 in-lb
Minimum Operating Temperature -76 Degrees F
Terminal Material Copper
Termination Screw Finish Nickel Plated
RoHS Compliant Yes
Housing Material Thermal Plastic
Screw Type Phil-Slot
Compatible with Product Type Power Distribution Blocks
Termination Screw Material Steel
Cover Included No
Maximum Operating Temperature 266 Degrees F
Housing Color Black
Country of Origin China (subject to change)
