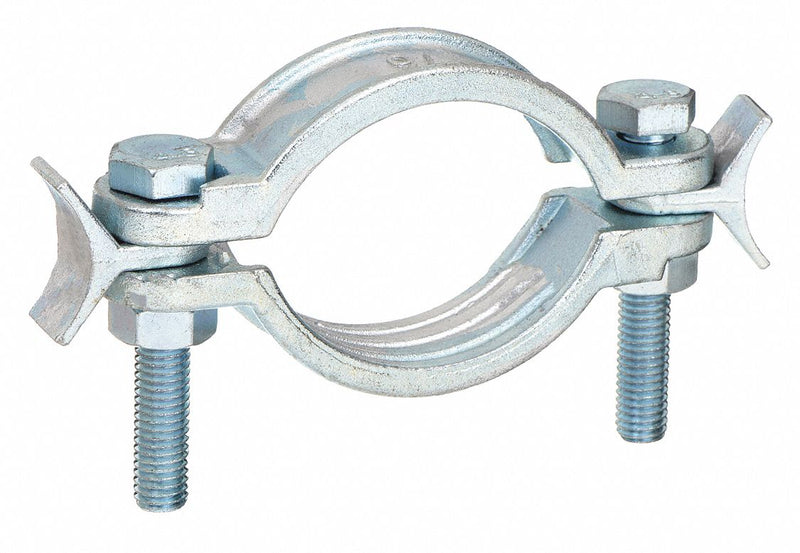

Approved Vendor 3LZ28 Hose Clamp, Zinc-Plated Steel Band, Smooth, External Hex, 1 9/32 in – 1 19/32 in Dia.

Approved Vendor KV3LZ28 Hose Clamp, Zinc-Plated Steel Band, Smooth, External Hex, 1 9/32 in – 1 19/32 in Dia.

UPC: 190735481080 | Harmonization / Schedule B : 7326.90.8688

Country of Origin: China | Shipping Weight: 0.45 lbs

$7.62 - $7.62
$7.62
$7.62 - $7.62
$7.62

Hose Clamp, Band Material Steel, Band Material Finish Zinc-Plated, Band Thickness 0.256 in, Band Width 3/4 in, Clamp Maximum Inside Diameter 1 19/32 in, Clamp Minimum Inside Diameter 1 9/32 in, Install Torque 40 ft-lb, Screw Material Steel, Screw Material Finish Zinc-Plated, Clamp Type Double-Bolt Clamp, Fastener Housing Material Zinc-Plated Steel, For Use On Compressor Hoses, Low Pressure Couplings, Pneumatic Couplings, Hex Size 10 mm

Min. Hose Outside Dia. (In.) 1 5/8 in
Max. Hose Outside Dia. (In.) 1 13/16 in
Hose Inside Dia. (In.) 1 in
Clamp Maximum Inside Diameter 1 19/32 in
Clamp Minimum Inside Diameter 1 9/32 in
Hex Size 10 mm
For Minimum Outside Diameter 1 9/32 in
For Maximum Outside Diameter 1 19/32 in
Band Thickness 0.256 in
Band Width 3/4 in
MFR # 3LZ28
Zoro # G1763422
UPC # 190735481080
Country of Origin China
Clamp Type Double-Bolt Clamp
For Use With Low Pressure Couplings
Type Bolt-Close Clamp
Material of Construction Carbon Steel
Torque (Foot-Pounds) 40 ft-lb
Install Torque 40 ft-lb
Features 2 Bolt
Application Air Pressure Applications
Minimum Operating Temperature -20 Degrees F
Band Type Smooth
Grade General Purpose
Reusable Clamp Yes
Screw Material Finish Zinc-Plated
Maximum Operating Temperature 150 Degrees F
Drive Type External Hex
Maximum Torque 40 ft-lb
For Use On Compressor Hoses, Low Pressure Couplings, Pneumatic Couplings
Fastener Housing Material Zinc-Plated Steel
Band Material Finish Zinc-Plated
Band Material Steel
For Environment Agicultural, Drilling, Jackhammer, Mining, Washdown
Screw Material Steel
Country of Origin China (subject to change)
