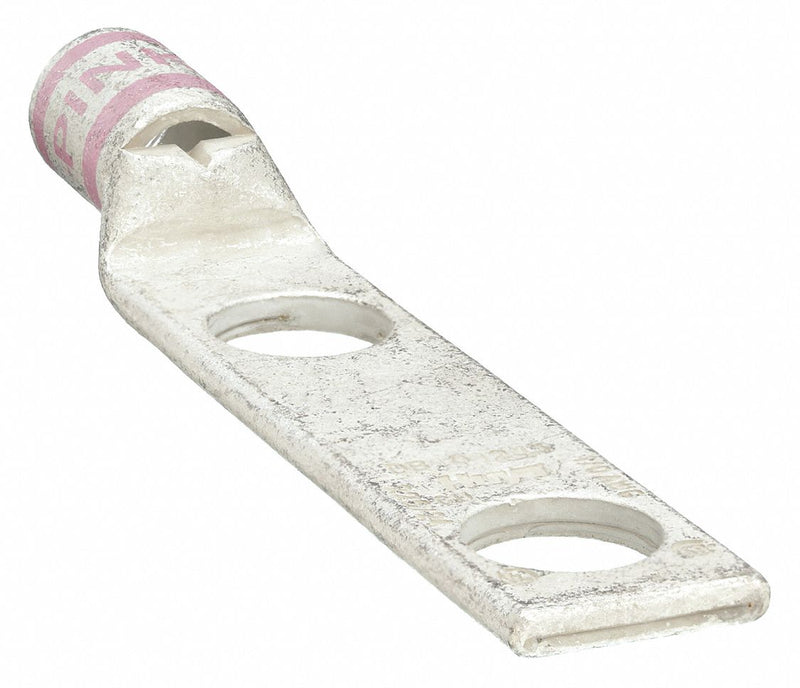

Approved Vendor 24C437 Compression Lug, For 1/0 AWG, Stranded Wire, 3/8 in Stud Size, Std, Copper Barrel

Approved Vendor KV24C437 Compression Lug, For 1/0 AWG, Stranded Wire, 3/8 in Stud Size, Std, Copper Barrel

UPC: 190735432822 | Harmonization / Schedule B : 8535.90.8020

Country of Origin: China | Shipping Weight: 0.078 lbs

$8.57 - $8.57
$8.57
$8.57 - $8.57
$8.57

Two-Hole Lug Compression Connector, Barrel Size Short, Color Code Pink, Die Code 42, Tongue Angle Straight, Tongue Width 0.75 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Inspection Hole Yes, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed

For Wire Size 1/0 AWG
For Stud Size 3/8 in
Barrel Size Short
Tongue Width 0.75 in
Barrel Length Short
Width 3/4"
Length 2.88"
Cable Size 1/0
Length (Straight Wireway) 2.88 in
Barrel Outside Diameter 0.52 in
For Stranded Copper Wire Size - Minimum 1/0 AWG
Tongue Length 1.93 in
Overall Length 2.88 in
Overall Width 0.75 in
Barrel Inside Diameter 0.39 in
For Stranded Copper Wire Size - Maximum 1/0 AWG
Tongue Thickness 0.13 in
Hole Size 0.405 in
Strip Length 13/16 in
Wire Rope Length 2.88 in
For Conductor Material Copper
Material Copper
Tongue Angle Straight
Inspection Hole Yes
Die Code 42
Color Code Pink
Standards CSA Certified, UL Listed
Lug Compression Connector Type Two-Hole Lug Compression Connector
Hole Center to End 0.38 in
Tongue Style Standard
Connector Type Straight Barrel
Peep Hole Yes
Hole Center to Center 1 in
Termination Style Crimp
Barrel Style Chamfered
Maximum Voltage 35 kV
Maximum Operating Temperature 300 Degrees F
For Wire Type Stranded
Contact Finish Tin
Current 230 A
Seam Style Seamless
Special Features Corrosion Resistant, High-Conductivity Construction
RoHS Compliant Yes
Number of Holes 2
Country of Origin China
