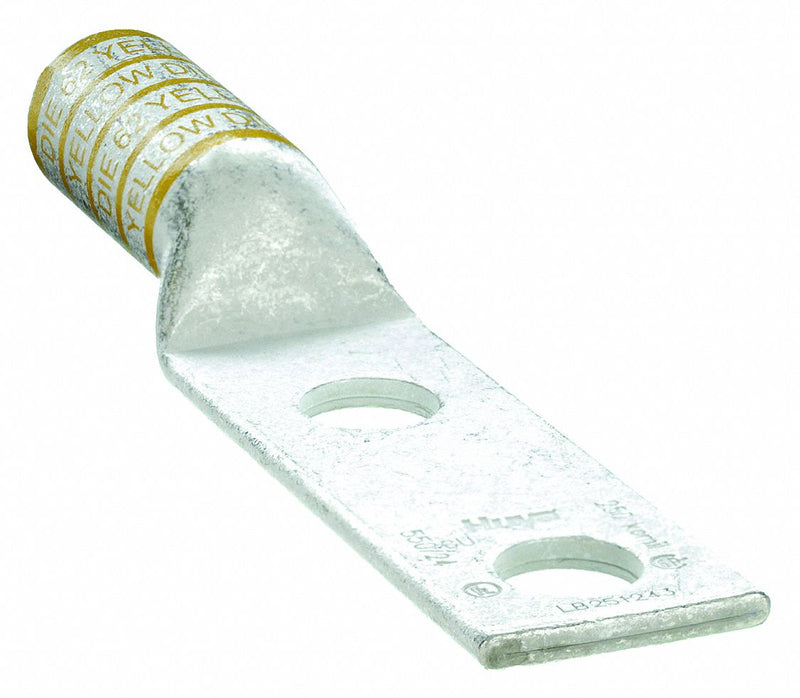

Approved Vendor 24C397 Compression Lug, For 250 kcmil, Stranded Wire, 3/8 in Stud Size, Long, Copper Barrel

Approved Vendor KV24C397 Compression Lug, For 250 kcmil, Stranded Wire, 3/8 in Stud Size, Long, Copper Barrel

UPC: 190735432433 | Harmonization / Schedule B : 8535.90.8020

Country of Origin: China | Shipping Weight: 0.2 lbs

$17.09 - $17.09
$17.09
$17.09 - $17.09
$17.09

Two-Hole Lug Compression Connector, Barrel Size Long, Color Code Yellow, Die Code 62, Tongue Angle Straight, Tongue Width 1.13 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 250 kcmil, For Stranded Copper Wire Size - Maximum 250 kcmil, Inspection Hole No, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless

For Wire Size 250 kcmil
For Stud Size 3/8 in
Barrel Size Long
Tongue Width 1.13 in
Width 1.13"
Length 3.88"
Barrel Length Long
Cable Size 250 kcmil
Length (Straight Wireway) 3.88 in
Barrel Outside Diameter 0.77 in
Tongue Length 1.93 in
For Stranded Copper Wire Size - Maximum 250 kcmil
Barrel Inside Diameter 0.63 in
Strip Length 1 11/16 in
For Stranded Copper Wire Size - Minimum 250 kcmil
Overall Length 3.88 in
Tongue Thickness 0.14 in
Overall Width 1.13 in
Hole Size 0.405 in
Wire Rope Length 3.88 in
For Conductor Material Copper
Material Copper
Tongue Angle Straight
Inspection Hole No
Die Code 62
Color Code Yellow
Standards CSA Certified, UL Listed
Peep Hole No
Hole Center to Center 1 in
Lug Compression Connector Type Two-Hole Lug Compression Connector
Connector Type Straight Barrel
Tongue Style Standard
Hole Center to End 0.38 in
Current 405 A
Maximum Voltage 35 kV
RoHS Compliant Yes
Seam Style Seamless
Barrel Style Chamfered
Contact Finish Tin
Special Features Corrosion Resistant, High-Conductivity Construction
For Wire Type Stranded
Termination Style Crimp
Maximum Operating Temperature 300 Degrees F
Number of Holes 2
Country of Origin China
