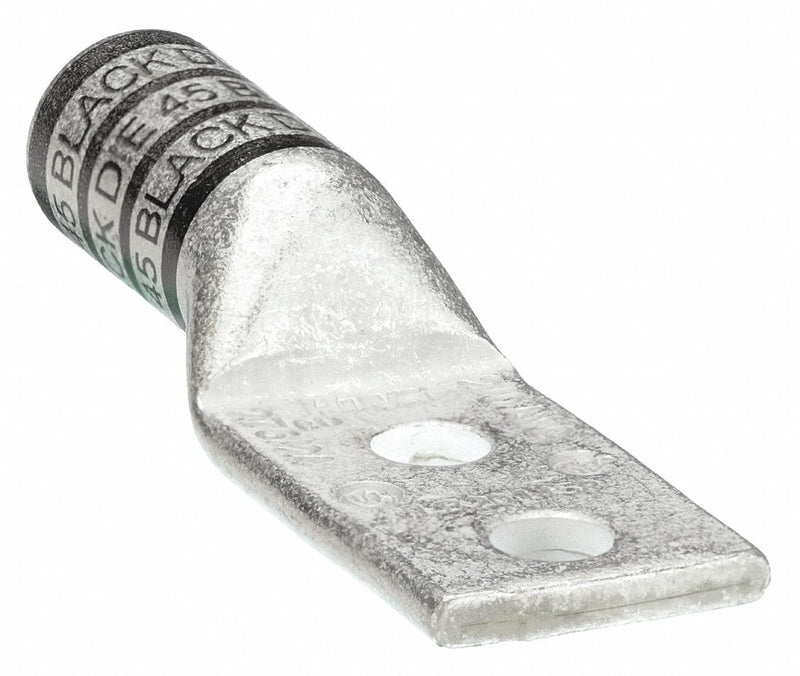

Approved Vendor 24C394 Compression Lug, For 2/0 AWG, Stranded Wire, 3/8 in Stud Size, Long, Copper Barrel

Approved Vendor KV24C394 Compression Lug, For 2/0 AWG, Stranded Wire, 3/8 in Stud Size, Long, Copper Barrel

UPC: 190735432402 | Harmonization / Schedule B : 8535.90.8020

Country of Origin: China | Shipping Weight: 0.097 lbs

$10.65 - $10.65
$10.65
$10.65 - $10.65
$10.65

Two-Hole Lug Compression Connector, Barrel Size Long, Color Code Black, Die Code 45, Tongue Angle Straight, Tongue Width 0.83 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 2/0 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, Inspection Hole No, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed

For Wire Size 2/0 AWG
For Stud Size 3/8 in
Barrel Size Long
Tongue Width 0.83 in
Cable Size 2/0
Barrel Length Long
Width 0.83"
Length 3.16"
Length (Straight Wireway) 3.16 in
Tongue Thickness 0.13 in
Strip Length 1 1/8 in
Overall Length 3.16 in
Tongue Length 1.81 in
For Stranded Copper Wire Size - Minimum 2/0 AWG
Hole Size 0.405 in
Overall Width 0.83 in
Barrel Outside Diameter 0.57 in
Barrel Inside Diameter 0.44 in
For Stranded Copper Wire Size - Maximum 2/0 AWG
Wire Rope Length 3.16 in
For Conductor Material Copper
Material Copper
Tongue Angle Straight
Inspection Hole No
Die Code 45
Color Code Black
Standards CSA Certified, UL Listed
Hole Center to Center 1 in
Connector Type Straight Barrel
Lug Compression Connector Type Two-Hole Lug Compression Connector
Hole Center to End 0.38 in
Tongue Style Standard
Peep Hole No
RoHS Compliant Yes
Special Features Corrosion Resistant, High-Conductivity Construction
Barrel Style Chamfered
Termination Style Crimp
Contact Finish Tin
Seam Style Seamless
Maximum Voltage 35 kV
For Wire Type Stranded
Current 265 A
Maximum Operating Temperature 300 Degrees F
Number of Holes 2
Country of Origin China
