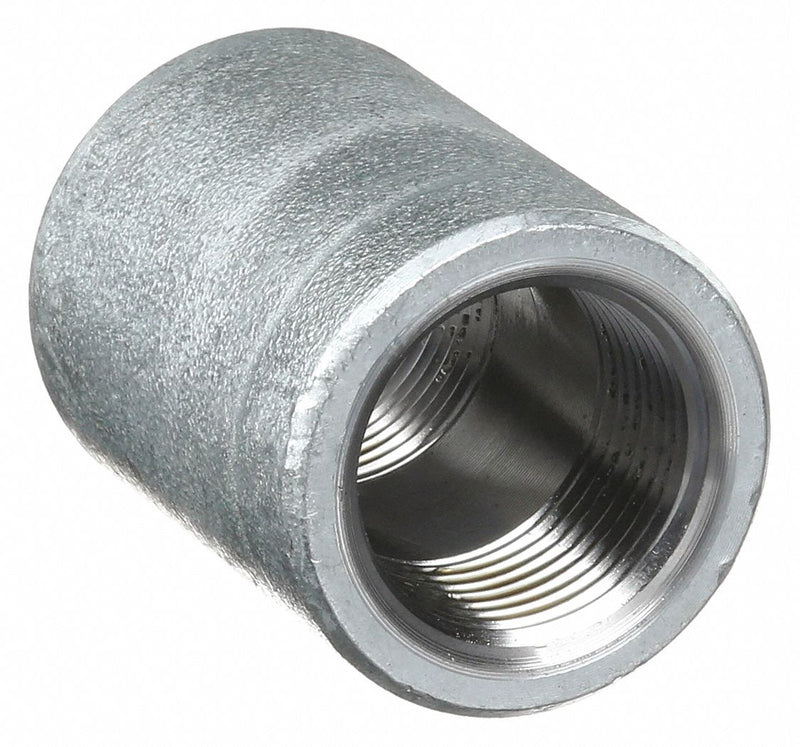

Approved Vendor 1MPH6 Metal Pipe Straight, Coupling Body, Steel, Class 3000, 2 in x 2 in

Approved Vendor KV1MPH6 Metal Pipe Straight, Coupling Body, Steel, Class 3000, 2 in x 2 in

UPC: 190735922187 | Harmonization / Schedule B : 7307.92.3010

Country of Origin: | Shipping Weight: 3.102 lbs

$39.55 - $39.55
$39.55
$39.55 - $39.55
$39.55

Coupling Body, Steel, Galvanized, A105, Class Class 3000, For Pipe Schedule Schedule 160, 2 in, Female, Threaded, 3 in, 11 1/2, 2 In.-11.5, 2 in, Female, Threaded, 11 1/2, 2 In.-11.5, Not Applicable Maximum Operating Pressure

Pipe Size - Pipe Fitting 2"
Pipe Size (Fittings) 2"
Fitting Side A Nominal Pipe Size 2 in
Pipe Size 2"
Fitting Side B Nominal Pipe Size 2 in
Fitting Thread Size B 2"-11.5
Fitting Side A Outside Diameter 3 in
Fitting Thread Size A 2"-11.5
Overall Length 3 3/8 in
Wire Rope Length 3 3/8 in
Length 3 3/8 in
Specific Fitting Shape Coupling
Fitting Schedule/Class Class 3000
Basic Pipe Fitting Material Metal
Basic Pipe Fitting Shape Coupling
Fitting Connection Type FNPT
Standards ANSI B1.20.1, ASME B16.11 and SA105, ASTM A105
Max. Pressure 3000 psi @ 72 Degrees F
Pipe Fitting Material Forged Steel
Specific Pipe Fitting Shape Coupling
Pipe Fitting Schedule/Class Class 3000
Includes Pre-Applied Thread Sealant No
Includes Seal No
Fitting Side B Type Threaded
Fitting Side A Gender Female
Color Silver
Fitting Side B Pipe Threading 11 1/2
Fitting Side A Type Threaded
Finish/Coating Galvanized
Fitting Side A Pipe Threading 11 1/2
Fitting Side B Gender Female
Class Class 3000
Side A Thread Type NPT
Application Air, Non-Potable Water, Oils
Side B Thread Type NPT
For Pipe Schedule Schedule 160
Material Grade A105
Country of Origin Multiple
