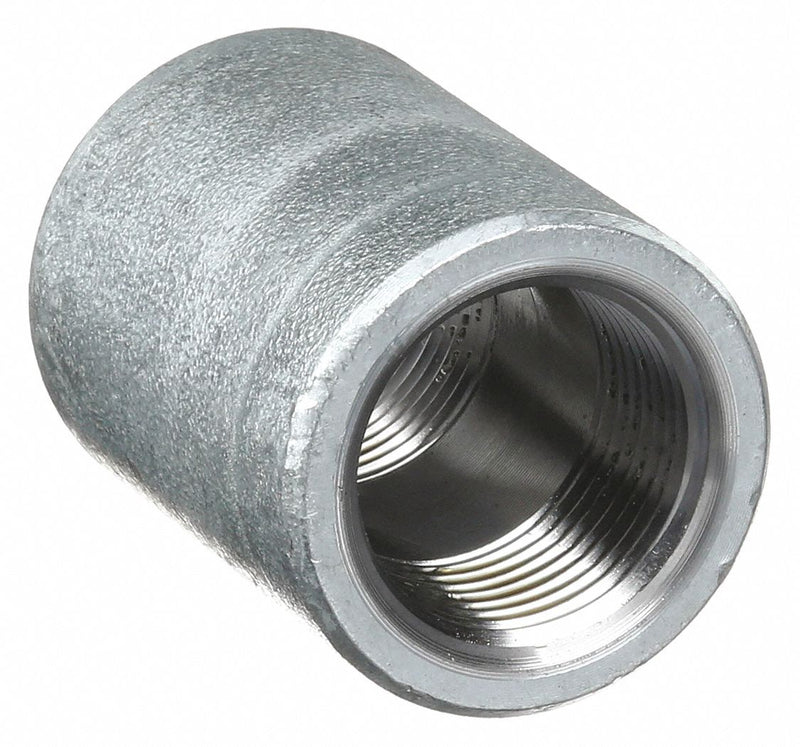

Approved Vendor 1MPH5 Metal Pipe Straight, Coupling Body, Steel, Class 3000, 1 1/2 in x 1 1/2 in

Approved Vendor KV1MPH5 Metal Pipe Straight, Coupling Body, Steel, Class 3000, 1 1/2 in x 1 1/2 in

UPC: 190735921647 | Harmonization / Schedule B : 7307.92.3010

Country of Origin: | Shipping Weight: 2.368 lbs

$30.91 - $30.91
$30.91
$30.91 - $30.91
$30.91

Coupling Body, Steel, Galvanized, A105, Class Class 3000, For Pipe Schedule Schedule 160, 1 1/2 in, Female, Threaded, 2 1/2 in, 11 1/2, 1 1/2 In.-11.5, 1 1/2 in, Female, Threaded, 11 1/2, 1 1/2 In.-11.5, Not Applicable Maximum Operating Pressure

Pipe Size - Pipe Fitting 1-1/2"
Pipe Size (Fittings) 1-1/2"
Fitting Side B Nominal Pipe Size 1 1/2 in
Fitting Side A Nominal Pipe Size 1 1/2 in
Pipe Size 1-1/2"
Fitting Thread Size A 1 1/2"-11.5
Fitting Side A Outside Diameter 2 1/2 in
Overall Length 3 7/64 in
Fitting Thread Size B 1 1/2"-11.5
Wire Rope Length 3 7/64 in
Length 3 7/64 in
Specific Fitting Shape Coupling
Fitting Schedule/Class Class 3000
Basic Pipe Fitting Material Metal
Basic Pipe Fitting Shape Coupling
Fitting Connection Type FNPT
Standards ANSI B1.20.1, ASME B16.11 and SA105, and ASTM A105
Max. Pressure 3000 psi @ 72 Degrees F
Specific Pipe Fitting Shape Coupling
Pipe Fitting Material Forged Steel
Pipe Fitting Schedule/Class Class 3000
Fitting Side B Type Threaded
Color Silver
Fitting Side A Gender Female
Fitting Side A Pipe Threading 11 1/2
Includes Seal No
Fitting Side B Pipe Threading 11 1/2
Fitting Side A Type Threaded
Class Class 3000
Finish/Coating Galvanized
Includes Pre-Applied Thread Sealant No
Fitting Side B Gender Female
Side B Thread Type NPT
For Pipe Schedule Schedule 160
Application Air, Non-Potable Water, Oils
Material Grade A105
Side A Thread Type NPT
Country of Origin Multiple
