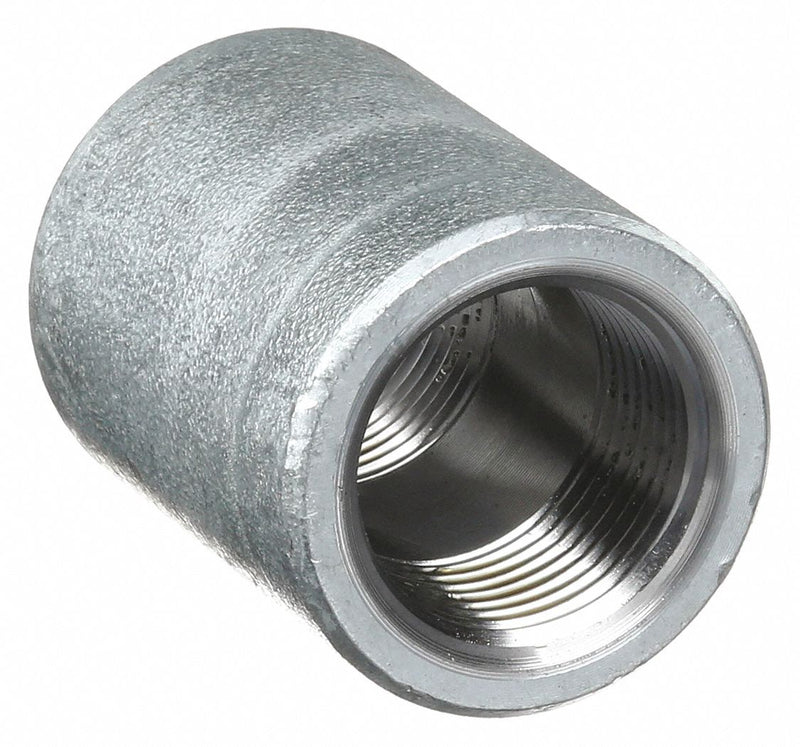

Approved Vendor 1MPH4 Metal Pipe Straight, Coupling Body, Steel, Class 3000, 1 1/4 in x 1 1/4 in

Approved Vendor KV1MPH4 Metal Pipe Straight, Coupling Body, Steel, Class 3000, 1 1/4 in x 1 1/4 in

UPC: 190735912300 | Harmonization / Schedule B : 7307.92.3010

Country of Origin: | Shipping Weight: 1.796 lbs

$25.40 - $25.40
$25.40
$25.40 - $25.40
$25.40

Coupling Body, Steel, Galvanized, A105, Class Class 3000, For Pipe Schedule Schedule 160, 1 1/4 in, Female, Threaded, 2 1/4 in, 11 1/2, 1 1/4 In.-11.5, 1 1/4 in, Female, Threaded, 11 1/2, 1 1/4 In.-11.5, Not Applicable Maximum Operating Pressure

Pipe Size - Pipe Fitting 1-1/4"
Pipe Size (Fittings) 1-1/4"
Fitting Side B Nominal Pipe Size 1 1/4 in
Fitting Side A Nominal Pipe Size 1 1/4 in
Pipe Size 1-1/4"
Fitting Thread Size A 1 1/4"-11.5
Overall Length 2 39/64 in
Fitting Side A Outside Diameter 2 1/4 in
Fitting Thread Size B 1 1/4"-11.5
Wire Rope Length 2 39/64 in
Length 2 39/64 in
Specific Fitting Shape Coupling
Fitting Schedule/Class Class 3000
Basic Pipe Fitting Material Metal
Basic Pipe Fitting Shape Coupling
Fitting Connection Type FNPT
Standards ANSI B1.20.1, ASME B16.11 and SA105, and ASTM A105
Max. Pressure 3000 psi @ 72 Degrees F
Specific Pipe Fitting Shape Coupling
Pipe Fitting Material Forged Steel
Pipe Fitting Schedule/Class Class 3000
Finish/Coating Galvanized
Fitting Side B Gender Female
Includes Pre-Applied Thread Sealant No
Color Silver
Fitting Side A Gender Female
Fitting Side A Type Threaded
Includes Seal No
Class Class 3000
Fitting Side B Pipe Threading 11 1/2
Fitting Side B Type Threaded
Fitting Side A Pipe Threading 11 1/2
Application Air, Non-Potable Water, Oils
For Pipe Schedule Schedule 160
Side A Thread Type NPT
Side B Thread Type NPT
Material Grade A105
Country of Origin Multiple
