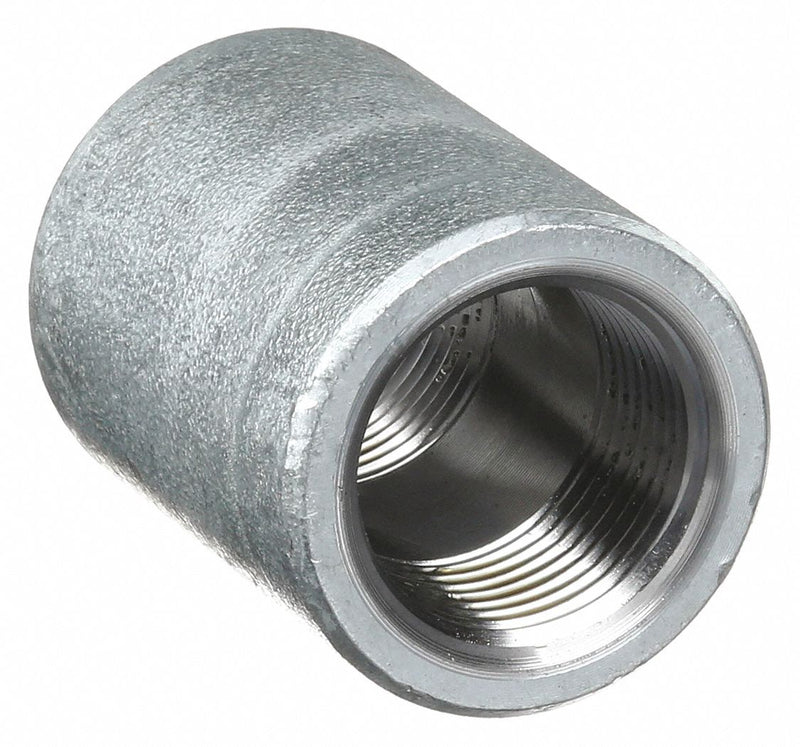

Approved Vendor 1MPH2 Metal Pipe Straight, Coupling Body, Steel, Class 3000, 3/4 in x 3/4 in

Approved Vendor KV1MPH2 Metal Pipe Straight, Coupling Body, Steel, Class 3000, 3/4 in x 3/4 in

UPC: 190735930519 | Harmonization / Schedule B : 7307.92.3010

Country of Origin: | Shipping Weight: 0.421 lbs

$10.45 - $10.45
$10.45
$10.45 - $10.45
$10.45

Coupling Body, Steel, Galvanized, A105, Class Class 3000, For Pipe Schedule Schedule 160, 3/4 in, Female, Threaded, 1 3/8 in, 14, 3/4 In.-14, 3/4 in, Female, Threaded, 14, 3/4 In.-14, Not Applicable Maximum Operating Pressure

Pipe Size (Fittings) 3/4"
Pipe Size - Pipe Fitting 3/4"
Fitting Side B Nominal Pipe Size 3/4 in
Pipe Size 3/4"
Fitting Side A Nominal Pipe Size 3/4 in
Fitting Thread Size A 3/4"-14
Fitting Thread Size B 3/4"-14
Fitting Side A Outside Diameter 1 3/8 in
Overall Length 2 in
Wire Rope Length 2 in
Length 2 in
Specific Fitting Shape Coupling
Fitting Schedule/Class Class 3000
Basic Pipe Fitting Material Metal
Basic Pipe Fitting Shape Coupling
Fitting Connection Type FNPT
Standards ANSI B1.20.1, ASME B16.11 and SA105, ASTM A105
Max. Pressure 3000 psi @ 72 Degrees F
Pipe Fitting Material Forged Steel
Specific Pipe Fitting Shape Coupling
Pipe Fitting Schedule/Class Class 3000
Fitting Side B Type Threaded
Fitting Side B Gender Female
Class Class 3000
Fitting Side A Pipe Threading 14
Includes Pre-Applied Thread Sealant No
Fitting Side A Gender Female
Color Silver
Finish/Coating Galvanized
Fitting Side A Type Threaded
Includes Seal No
Fitting Side B Pipe Threading 14
Side B Thread Type NPT
Side A Thread Type NPT
Application Air, Non-Potable Water, Oils
For Pipe Schedule Schedule 160
Material Grade A105
Country of Origin Multiple
