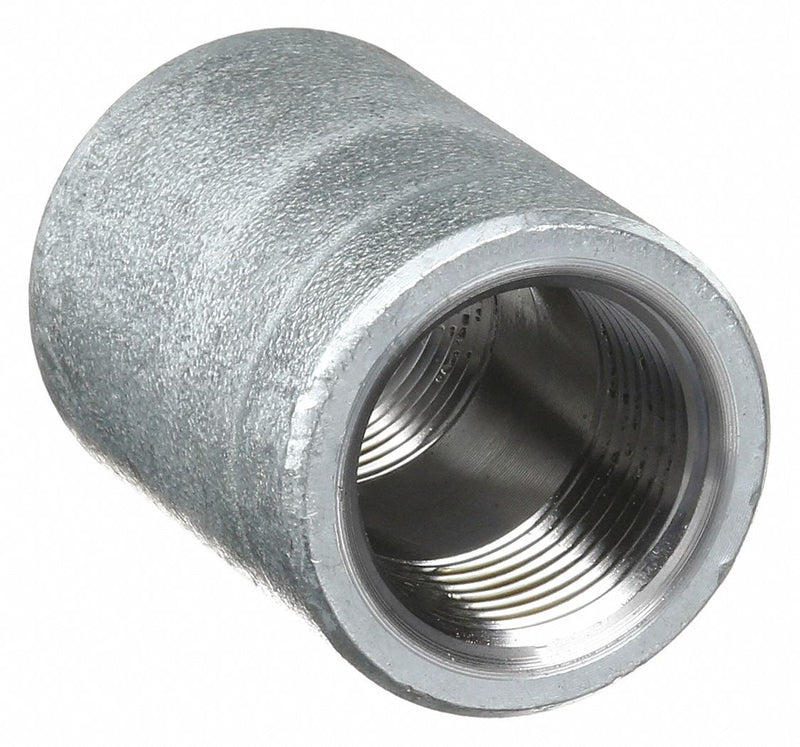

Approved Vendor 1MPH1 Metal Pipe Straight, Coupling Body, Steel, Class 3000, 1/2 in x 1/2 in

Approved Vendor KV1MPH1 Metal Pipe Straight, Coupling Body, Steel, Class 3000, 1/2 in x 1/2 in

UPC: 190735907214 | Harmonization / Schedule B : 7307.92.3010

Country of Origin: | Shipping Weight: 0.291 lbs

$7.82 - $7.82
$7.82
$7.82 - $7.82
$7.82

Coupling Body, Steel, Galvanized, A105, Class Class 3000, For Pipe Schedule Schedule 160, 1/2 in, Female, Threaded, 1 7/64 in, 14, 1/2 In.-14, 1/2 in, Female, Threaded, 14, 1/2 In.-14, Not Applicable Maximum Operating Pressure

Pipe Size - Pipe Fitting 1/2"
Pipe Size (Fittings) 1/2"
Fitting Side B Nominal Pipe Size 1/2 in
Fitting Side A Nominal Pipe Size 1/2 in
Pipe Size 1/2"
Fitting Side A Outside Diameter 1 7/64 in
Fitting Thread Size A 1/2"-14
Fitting Thread Size B 1/2"-14
Overall Length 1 7/8 in
Wire Rope Length 1 7/8 in
Length 1 7/8 in
Specific Fitting Shape Coupling
Fitting Schedule/Class Class 3000
Basic Pipe Fitting Material Metal
Basic Pipe Fitting Shape Coupling
Fitting Connection Type FNPT
Standards ANSI B1.20.1, ASME B16.11 and SA105, and ASTM A105
Max. Pressure 3000 psi @ 72 Degrees F
Pipe Fitting Material Forged Steel
Specific Pipe Fitting Shape Coupling
Fitting Side B Gender Female
Fitting Side A Pipe Threading 14
Includes Pre-Applied Thread Sealant No
Fitting Side A Gender Female
Fitting Side B Type Threaded
Fitting Side B Pipe Threading 14
Includes Seal No
Color Silver
Finish/Coating Galvanized
Fitting Side A Type Threaded
Class Class 3000
Side A Thread Type NPT
Side B Thread Type NPT
For Pipe Schedule Schedule 160
Material Grade A105
Application Air, Non-Potable Water, Oils
Country of Origin Multiple
