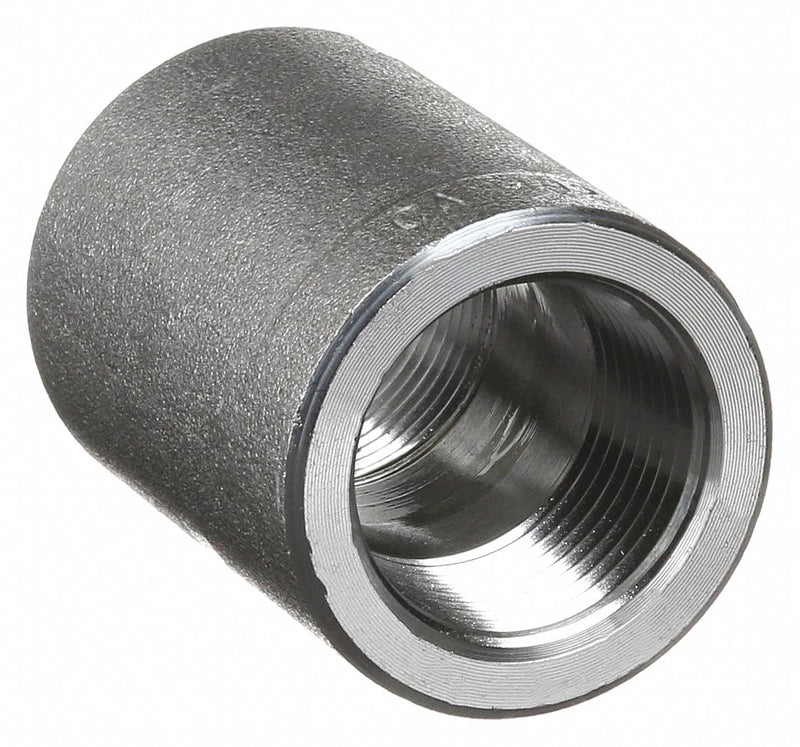

Approved Vendor 1MMZ9 Metal Pipe Straight, 1/8 in x 1/8 in, Female NPT Threaded x Female NPT Threaded

Approved Vendor KV1MMZ9 Metal Pipe Straight, 1/8 in x 1/8 in, Female NPT Threaded x Female NPT Threaded

UPC: 190735910566 | Harmonization / Schedule B : 7307.19.9080

Country of Origin: | Shipping Weight: 0.11 lbs

$8.61 - $8.61
$8.61
$8.61 - $8.61
$8.61

Coupling, Forged Steel, Black Oxide, Class Class 3000, 1/8 in, Female, NPT, 27, 1/8 in, Female, NPT, 27

Pipe Size (Fittings) 1/8"
Pipe Size - Pipe Fitting 1/8 in
Fitting Side B Nominal Pipe Size 1/8 in
Pipe Size 1/8"
Fitting Side A Nominal Pipe Size 1/8 in
Fitting Thread Size B 1/8"-27
Overall Length 1 1/4 in
Fitting Side A Outside Diameter 39/64 in
Fitting Thread Size A 1/8"-27
Wire Rope Length 1 1/4 in
Length 1 1/4 in
Specific Fitting Shape Coupling
Fitting Connection Type FNPT
Pipe Fitting Material Black Forged Steel
Class Class 3000
Standards ANSI B1.20.1, ASME B16.11 and SA105, ASTM A105
Basic Pipe Fitting Material Metal
Max. Pressure 3000 psi@72 Degrees F
Specific Pipe Fitting Shape Coupling
Basic Pipe Fitting Shape Coupling
Pipe Fitting Schedule/Class Class 3000
Fitting Schedule/Class Class 3000
Fitting Side A Type Threaded
Fitting Side A Gender Female
Fitting Side B Pipe Threading 27
Fitting Side B Gender Female
Includes Pre-Applied Thread Sealant No
Finish/Coating Ball Blasting
Fitting Side B Type Threaded
Fitting Side A Pipe Threading 27
Color Black
Includes Seal No
Material Grade A105
For Pipe Schedule Schedule 160
Application Air, Non-Potable Water, Oils
Side B Thread Type NPT
Side A Thread Type NPT
Country of Origin Multiple
