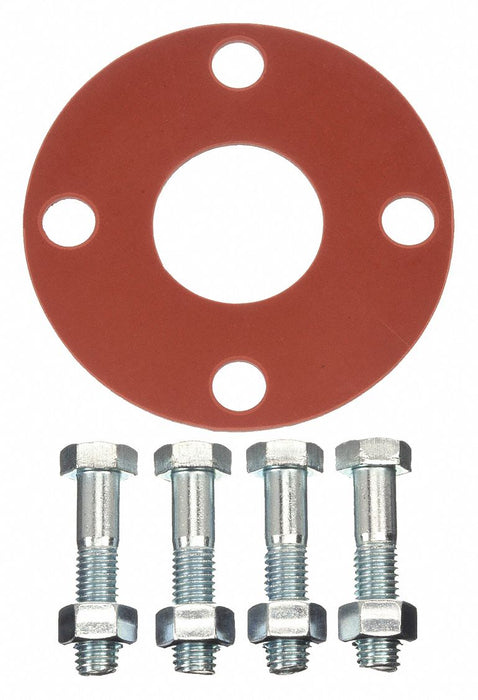

Approved Vendor GSFFG2.5 SBR Flange Gasket

Approved Vendor GSFFG2.5 Class 150 SBR Full Face Flange Gasket, 2-1/2 in Pipe

UPC: | Harmonization / Schedule B : 4016.93.5050

Country of Origin: United States | Shipping Weight: 1.89 lbs

$23.40 - $23.40
$23.40
$23.40 - $23.40
$23.40

Class 150, SBR, Full Face Flange Gasket. For Pipe Size 2-1/2 in, Inside Diameter 2-7/8 in, Outside Diameter 7 in, Thickness 1/8 in.

For Pipe Size 2-1/2 in
For Flange ANSI Class 150
Inside Diameter 2-7/8 in
Outside Diameter 7 in
Thickness 1/8 in
Minimum Operating Temperature -20 °F
Maximum Operating Temperature 180 °F
Maximum Operating Pressure 150 psi
Number of Bolt Holes 4
Bolt Hole Diameter 3/4 in
Bolt Circle Diameter 5-1/2 in
Includes (4) Grade A Zinc Plated Carbon Steel Bolts
Country of Origin United States
