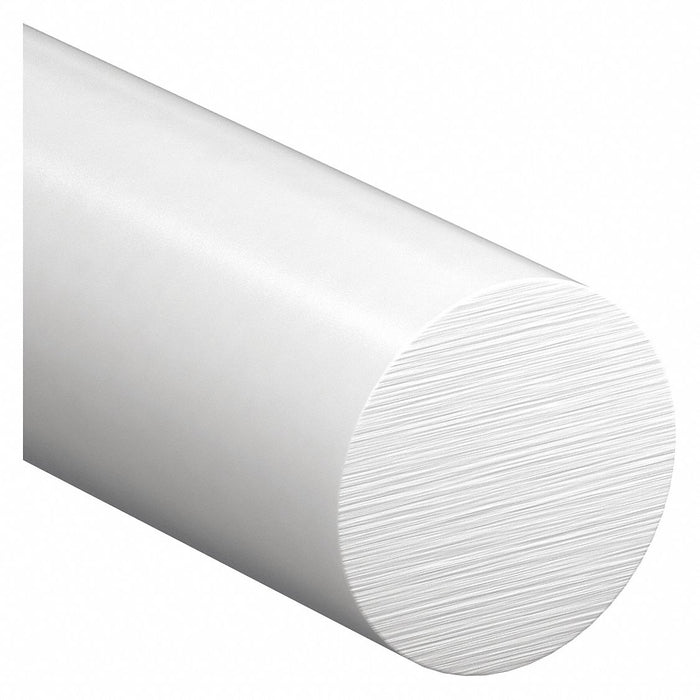

Approved Vendor G15-TRCE-1.0-1 PTFE Rod, Standard Grade, 1 in Dia, 12 in Lg, White

UPC: | Harmonization / Schedule B : 3916.10.0000

Country of Origin: Italy | Shipping Weight: 0.7 lbs

Original price $68.42 - Original price $68.42
Original price
$68.42
$68.42 - $68.42
Current price $68.42

PTFE Rod, PTFE, Grade Standard, Plastic Length 12 in, Plastic Diameter 1 in, White, Plastic Clarity Opaque, Minimum Temperature -328 Degrees F, Maximum Temperature 500 Degrees F, Tensile Strength 4,350 psi, Impact Strength 3 ft-lb/in, Friction Coefficient 0.08, Water Absorption 0.01 Percent, Plastic Density 138.24 lb/cu ft, Plastic Hardness 55D

Material PTFE
Color White
Tensile Strength (PSI) 4350
Max. Temp. (F) 500 Degrees F
Standards FDA
Min. Temp. (F) -328 Degrees F
Impact Strength (Lbs.) 3
Type Saw Cut Ends
Weight 0.24 lb
Water Absorption Rating Excellent
Maximum Temperature 500 Degrees F
Corrosion and Chemical Resistance Excellent
Grade Standard
Shape Rod
UV Resistant Yes
Plastic Hardness Rating Medium Soft
Friction Rating Very Slippery
Friction Coefficient 0.08
Minimum Temperature -328 Degrees F
Machinability Not Rated
Impact Strength 3 ft-lb/in
Temperature Range -328 Degrees to 500 Degrees F
Plastic Clarity Opaque
Tensile Strength 4,350 psi
Water Absorption 0.01 %
Impact Strength Rating Good
Tensile Strength Rating Poor
Wear Factor Excellent
Plastic Hardness 55D
Plastic Density 138.24 lb/cu ft
Light Transmission 9 %
Static-Resistant Not Static-Resistant
UV-Resistant UV-Resistant
Rockwell Hardness 50 HRR
FDA Compliance Not FDA Approved
Coefficient of Thermal Expansion 13 x 10^-5
Metal Detectable Not Metal Detectable
Dielectric Strength 80 kV/mm
Shore Hardness 55 Shore D
Scratch-Resistant Not Scratch-Resistant
Fabrication Molded
Wear Rate 3.40 x 10^-4 cu mm/N-m
Flexural Modulus 0.04 GPa
Country of Origin Italy
