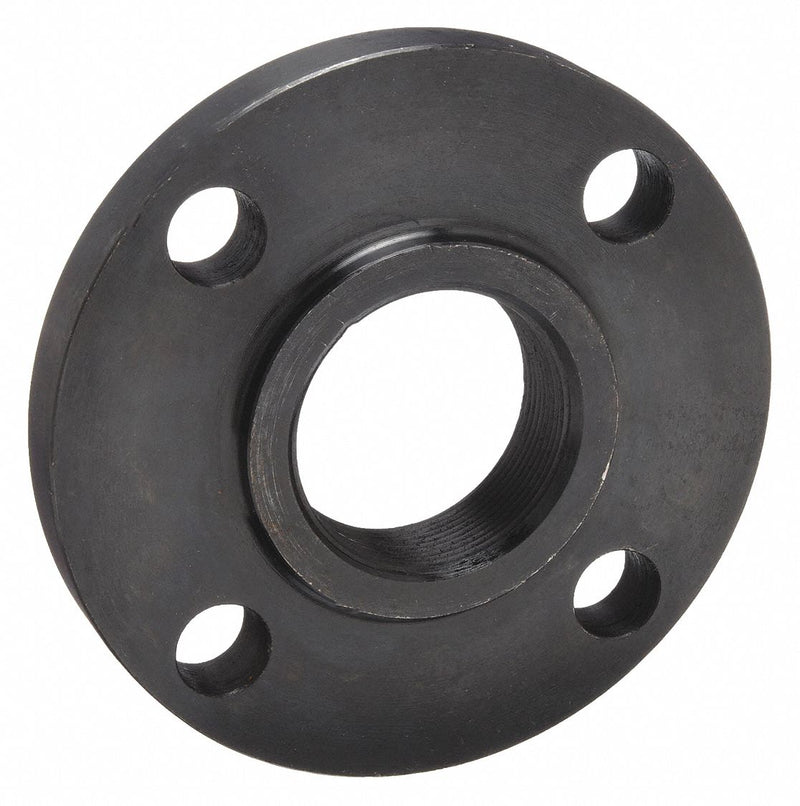

Approved Vendor FLCS1RFTHD300 Metal Pipe Flange, 3 in, Female NPT Threaded, Steel, Raised Flange, Class 150

Approved Vendor FLCS1RFTHD300 Metal Pipe Flange, 3 in, Female NPT Threaded, Steel, Raised Flange, Class 150

UPC: | Harmonization / Schedule B : 7307.91.5030

Country of Origin: | Shipping Weight: 8.92 lbs

$133.52 - $133.52
$133.52
$133.52 - $133.52
$133.52

Flange, Raised, 3 in Nominal Pipe Size, Flanged x FNPT, 7 1/2 in Flange Outside Diameter, 7/8 in Flange Thickness, 4 1/4 in Overall Length, Steel, Anodized, A105, Class Class 150, For Pipe Schedule Schedule 40, 300 psi Maximum Operating Pressure, -29 Degrees to 425 Degrees F, Number of Bolt Holes 4, 6 in Bolt Circle Diameter, 3/4 in Bolt Hole Diameter, 8 Flange Fitting Threading

Pipe Size (Fittings) 3"
Pipe Size - Pipe Fitting 3 in
Flange Thickness 7/8 in
Flange Outside Diameter 7 1/2 in
Bolt Circle Diameter 6 in
Nominal Pipe Size 3 in
Bolt Hole Diameter 3/4 in
Overall Length 4 1/4 in
Wire Rope Length 4 1/4 in
Length 4 1/4 in
Specific Fitting Shape Flange
Fitting Connection Type NPT
Pipe Fitting Material Black Steel
Class Class 150
Standards ASME B16.5, ASTM A105
Fitting Schedule/Class Class 150
Basic Pipe Fitting Shape Flange
Pipe Fitting Schedule/Class Class 150
Saturated Steam Pressure 150 psi
Specific Pipe Fitting Shape Flange
Max. Pressure 300 psi @ 150 Degrees F
Basic Pipe Fitting Material Metal
Pipe Fitting Connection Type NPT
Temp. Range -29 Degrees to 425 Degrees F
Maximum Operating Pressure 300 psi
Connection Surface Raised
Flange Fitting Threading 8
Low Lead Compliance Level No Lead Content
Finish/Coating Anodized
Application Air, Fuels, Non-Potable Water, Potable Water, Gases
For Pipe Schedule Schedule 40
Number of Bolt Holes 4
Color Black
Type Class 150, Threaded
Gravity Flow Pressure
Manufacture Location Globally Sourced
Pipe Connection Gender Female
Maximum Operating Temperature 800 Degrees F
Minimum Operating Temperature -20 Degrees F
Pipe Connection Type Threaded
Material Grade A105
Country of Origin Multiple
