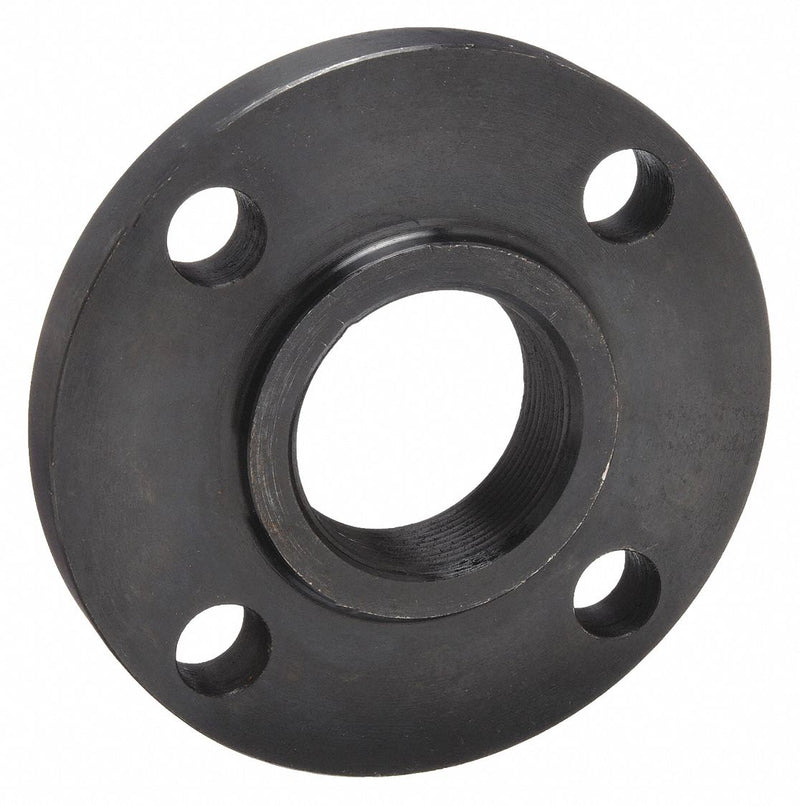

Approved Vendor FLCS1RFTHD212 Metal Pipe Flange, 2 1/2 in, Female NPT Threaded, Steel, Raised Flange, Class 150

Approved Vendor FLCS1RFTHD212 Metal Pipe Flange, 2 1/2 in, Female NPT Threaded, Steel, Raised Flange, Class 150

UPC: | Harmonization / Schedule B : 7307.91.5030

Country of Origin: | Shipping Weight: 7.75 lbs

$97.36 - $97.36
$97.36
$97.36 - $97.36
$97.36

Flange, Raised, 2 1/2 in Nominal Pipe Size, Flanged x FNPT, 7 in Flange Outside Diameter, 13/16 in Flange Thickness, 4 1/4 in Overall Length, Steel, Anodized, A105, Class Class 150, For Pipe Schedule Schedule 40, 150 psi Maximum Operating Pressure, -29 Degrees to 425 Degrees F, Number of Bolt Holes 4, 5 1/2 in Bolt Circle Diameter, 3/4 in Bolt Hole Diameter, 8 Flange Fitting Threading

Pipe Size (Fittings) 2-1/2"
Outside Dia. 7"
Pipe Size - Pipe Fitting 2-1/2 in
Flange Thickness 13/16 in
Flange Outside Diameter 7 in
Bolt Circle Diameter 5 1/2 in
Bolt Hole Diameter 3/4 in
Nominal Pipe Size 2 1/2 in
Overall Length 4 1/4 in
Wire Rope Length 4 1/4 in
Length 4 1/4 in
Specific Fitting Shape Flange
Fitting Connection Type NPT
Pipe Fitting Material Black Steel
Class Class 150
Standards ASME B16.3 and B16.4, ASTM A-197, ASTM A47, FM Approved, UL Listed
Basic Pipe Fitting Shape Flange
Max. Pressure 150 psi@450 Degrees F
Basic Pipe Fitting Material Metal
Saturated Steam Pressure 150 psi
Pipe Fitting Connection Type NPT
Pipe Fitting Schedule/Class Class 150
Specific Pipe Fitting Shape Flange
Fitting Schedule/Class Class 150
Temp. Range -29 Degrees to 425 Degrees F
For Pipe Schedule Schedule 40
Finish/Coating Anodized
Low Lead Compliance Level No Lead Content
Flange Fitting Threading 8
Application Air, Fuels, Non-Potable Water, Potable Water, Gases
Number of Bolt Holes 4
Connection Surface Raised
Color Black
Maximum Operating Pressure 150 psi
Type Class 150, Threaded
Pipe Connection Type Threaded
Pipe Connection Gender Female
Gravity Flow Pressure
Material Grade A105
Minimum Operating Temperature -20 Degrees F
Maximum Operating Temperature 800 Degrees F
Manufacture Location Globally Sourced
Country of Origin Multiple
