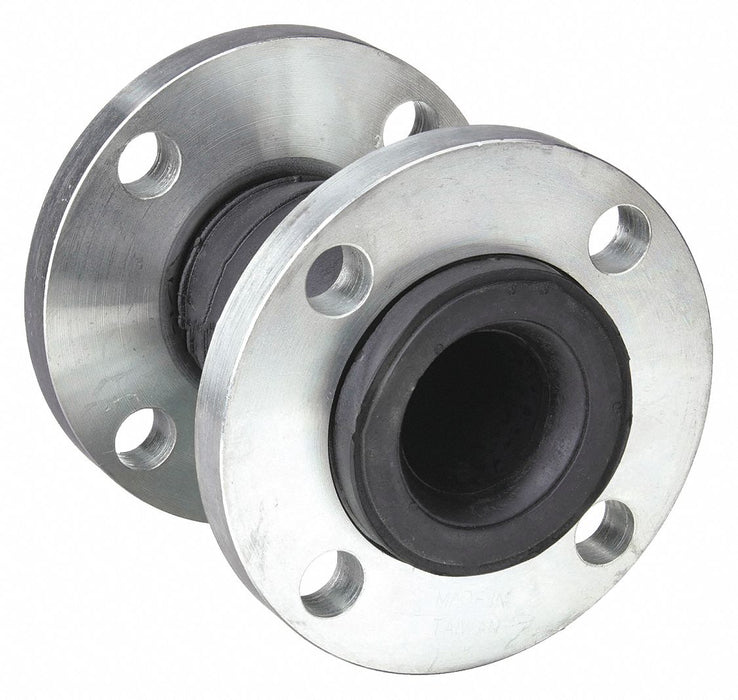

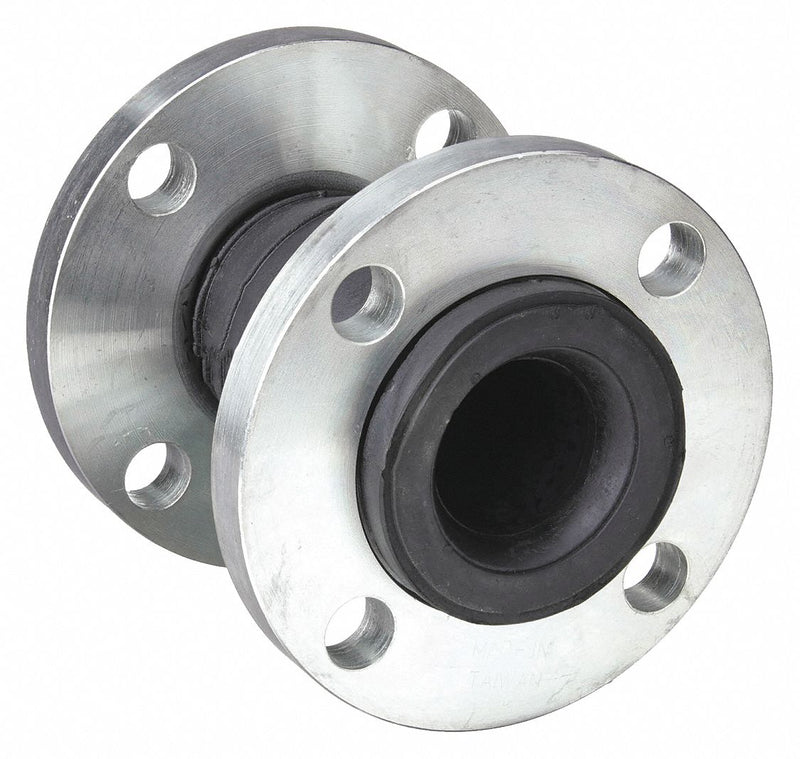

Approved Vendor AMSE202 Expansion Joint, 2 in Pipe Size

Approved Vendor AMSE202 Expansion Joint, 2 in Pipe Size, 6 in Flange Dia, 6 in Overall Lg, Steel with EPDM Bulb, For Air

UPC: | Harmonization / Schedule B : 4016.99.6050

Country of Origin: Italy | Shipping Weight: 7.85 lbs

$175.78 - $175.78
$175.78
$175.78 - $175.78
$175.78

Expansion Joint, Bolt Circle Diameter 4 3/4 in, Bolt Hole Size 5/8 In.-11, Bolt Hole Threading Threaded, Burst Pressure 853 psi, Compression Distance 1/2 in, Connection Type Flanged, Expansion Distance 3/8 in, Expansion Joint Type Single Bulb, Features Absorbs Pipe Movement and Stress, Flange Diameter 6 in, Flange Material Steel, Flange Material Finish Zinc-Plated, For Fluid Type Air, Joint Material EPDM

Type Single Sphere
Material EPDM
Connection Drilled
Max. Pressure 225 psi @ 72 Degrees F
Bolt Holes 4
Temp. Range -50 To 230 Deg F
Vacuum 26 In Hg At 72 Deg F
Pipe Fitting Material EPDM
Number of Bolt Holes 4
Flange Material Finish Zinc-Plated
Bolt Hole Threading Threaded
Minimum Operating Temperature -50 Degrees F
Expansion Joint Type Single Bulb
For Fluid Type Air, Water
For Use On Pipe
Burst Pressure 853 psi
Joint Material EPDM
Reinforcement Material Synthetic Fiber
Features Absorbs Pipe Movement and Stress
Maximum Off-Center Angle 15 Degrees
Maximum Operating Pressure 225 psi
Flange Material Steel
Compression Distance 1/2 in
Maximum Operating Temperature 230 Degrees F
Expansion Distance 3/8 in
For Environment HVAC, Industrial Piping, Marine Service, Petrochemical, Pollution Control, Power Generating, Pulp and Paper, Water and Wastewater
Maximum Vacuum Pressure 26 in Hg @ 72F
Offset Distance 1/2 in
Resistance Properties Corrosion Resistant
Connection Type Flanged
Country of Origin Italy
