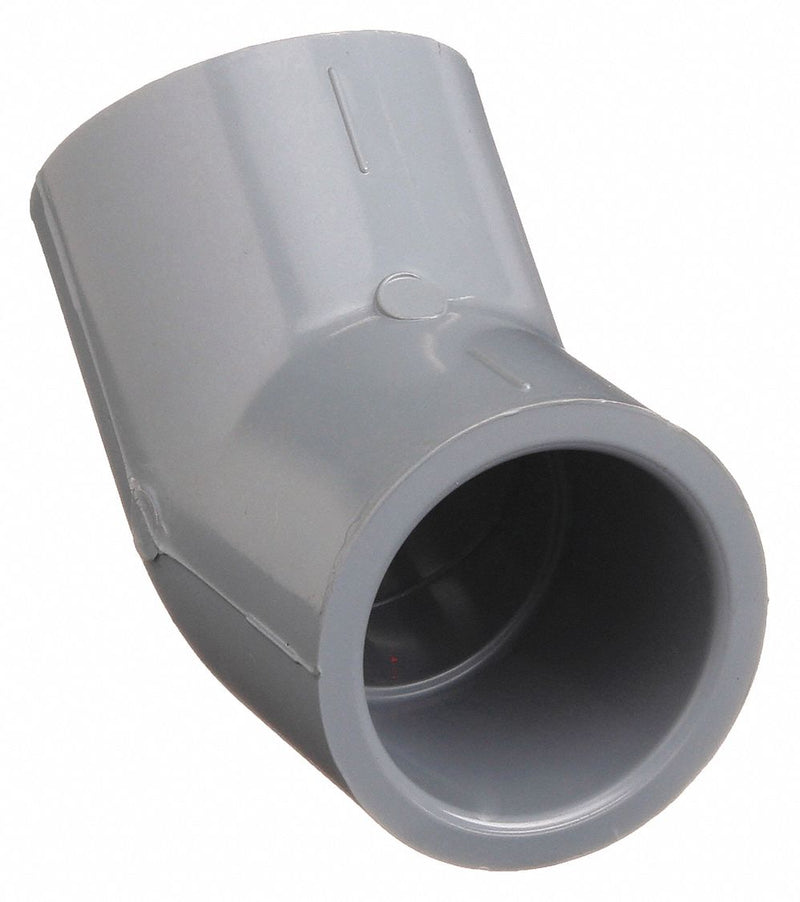

Approved Vendor 9817-005 CPVC 45-Degree Pipe Elbow, Schedule 80, 1/2 in

Approved Vendor 9817-005 CPVC 45-Degree Pipe Elbow, Schedule 80, 1/2 in, Socket x Socket, Gray

UPC: | Harmonization / Schedule B : 3917.40.0090

Country of Origin: United States | Shipping Weight: 0.05 lbs

$4.20 - $4.20
$4.20
$4.20 - $4.20
$4.20

45 Degrees Elbow, CPVC, Schedule 80, For Pipe Schedule Schedule 80, 1/2 in, Female, Socket, 1 1/8 in, 1/2 in, Female, Socket, 1 1/8 in, Includes Seal Seal Not Included, For Pipe Outside Diameter 1/2 in, 1 55/64 in Overall Length, 850 psi Maximum Operating Pressure, 32 Degrees to 200 Degrees F

Fitting Connection Type Socket x Socket
Pipe Fitting Material CPVC
Basic Pipe Fitting Shape Elbow
Fitting Schedule/Class Schedule 80
Standards ASTM D1784, NSF14 Certified
Max. Temp. 210 Degrees F
Specific Fitting Shape 45 Degree Elbow
Specific Pipe Fitting Shape 45 Degree Elbow
Basic Pipe Fitting Material Plastic
Color Gray
Max. Pressure 848 psi @ 73 Degrees F
Pipe Fitting Schedule/Class Schedule 80
Temp. Range 32 Degrees to 200 Degrees F
Maximum Operating Pressure 850 psi @ 73 Degrees F
Fitting Side B Type Socket
For Pipe Schedule 80
Fitting Side A Type Socket
Low Lead Certified Standard NSF 61
Includes Shield No
Includes Seal No
Fitting Side B Gender Female
Schedule Schedule 80
Application Non-Potable Water, Potable Water
Fitting Side A Gender Female
Includes Pre-Applied Thread Sealant No
Includes Plug No
Low Lead Compliance Level Certified
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin United States
