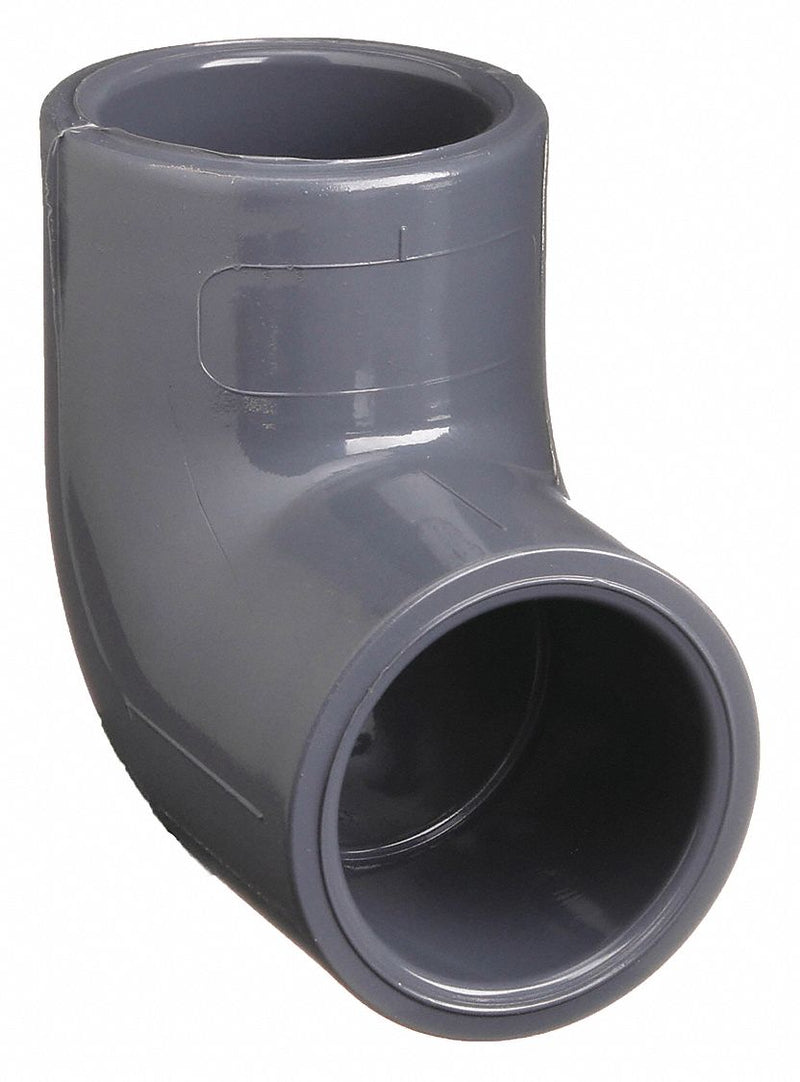

Approved Vendor 806-007 PVC 90-Degree Pipe Elbow, Schedule 80, 3/4 in

Approved Vendor 806-007 PVC 90-Degree Pipe Elbow, Schedule 80, 3/4 in, Socket x Socket, Gray

UPC: | Harmonization / Schedule B : 3917.40.0090

Country of Origin: United States | Shipping Weight: 0.1 lbs

$2.63 - $2.63
$2.63
$2.63 - $2.63
$2.63

90 Degrees Elbow, PVC, Schedule 80, For Pipe Schedule Schedule 80, 3/4 in, Female, Socket, 1 3/8 in, 3/4 in, Female, Socket, 1 3/8 in, Includes Seal Seal Not Included, For Pipe Outside Diameter 3/4 in, 2 7/16 in Overall Length, 690 psi Maximum Operating Pressure, 32 Degrees to 140 Degrees F

Specific Fitting Shape 90 Degrees Elbow
Fitting Connection Type Socket x Socket
Fitting Schedule/Class Schedule 80
Max. Pressure 688 psi at 73 Degrees F
Basic Pipe Fitting Shape Elbow
Specific Pipe Fitting Shape 90 Degree Elbow
Basic Pipe Fitting Material Plastic
Pipe Fitting Material PVC
Pipe Fitting Schedule/Class Schedule 80
Fittings Sub-Category Elbows
Color Gray
Max. Temp. 140 Degrees F
Standards ASTM D2467
Temp. Range 32 Degrees to 140 Degrees F
Application Non-Potable Water, Potable Water
Fitting Side A Type Socket
Includes Plug No
Fitting Side B Gender Female
Fitting Side A Gender Female
Includes Pre-Applied Thread Sealant No
Maximum Operating Pressure 690 psi @ 73 Degrees F
Low Lead Certified Standard NSF 61
Low Lead Compliance Level Certified
Fitting Side B Type Socket
For Pipe Schedule 80
Includes Shield No
Includes Seal No
Schedule Schedule 80
Restrictions This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
Country of Origin United States
