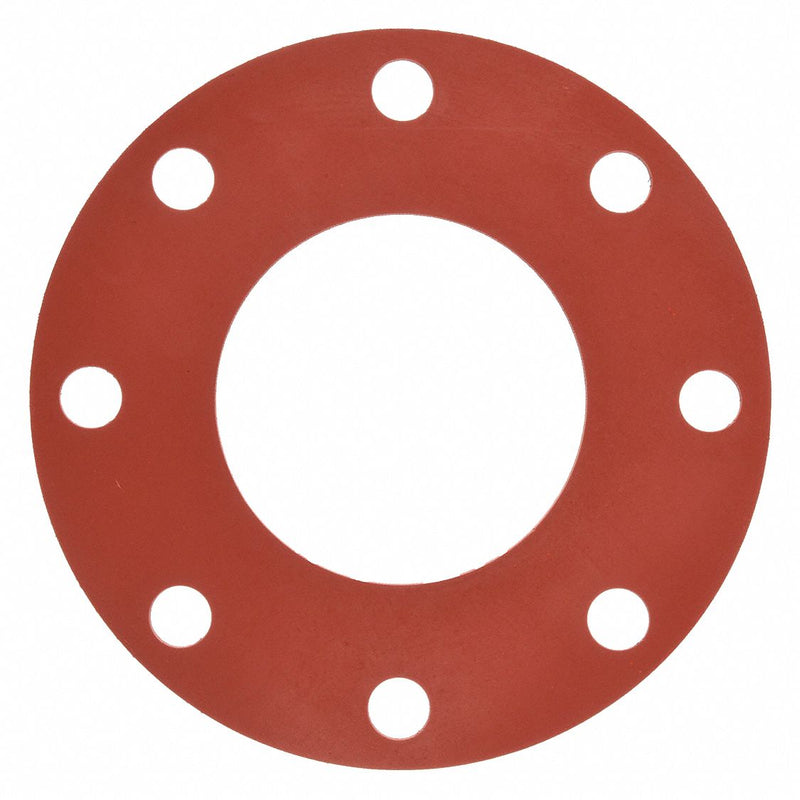

Approved Vendor 7124FF-0150-125-0400 Full Face Flange Gasket, Class 150, SBR, For 4 in Pipe, 1/8 in Thick, Red, 4 1/2 in Inside Dia

Approved Vendor 7124FF-0150-125-0400 Full Face Flange Gasket, Class 150, SBR, For 4 in Pipe, 1/8 in Thick, Red, 4 1/2 in Inside Dia

UPC: | Harmonization / Schedule B : 4016.93.0000

Country of Origin: | Shipping Weight: 0.31 lbs

$5.08 - $5.08
$5.08
$5.08 - $5.08
$5.08
Thickness 1/8 in
Gasket Type] Full-Face Gasket
Gasket Material SBR
For Pipe Size 4 in
For Flange ANSI Class 150
Includes Mounting Hardware No
Inside Diameter 4-1/2 in
Outside Diameter 9 in
Thickness 1/8 in
Color Red
Minimum Operating Temperature -20 °F
Maximum Operating Temperature 200 °F
Maximum Operating Pressure 150 psi
Number of Bolt Holes 8
Bolt Hole Diameter 3/4 in
Bolt Circle Diameter 7-1/2 in
FDA Approved No
Metal Detectable No
X-Ray Detectable No
Hardness Shore 75A
Standards ASME B16.21; ASME/ANSI
Country of Origin Varies
