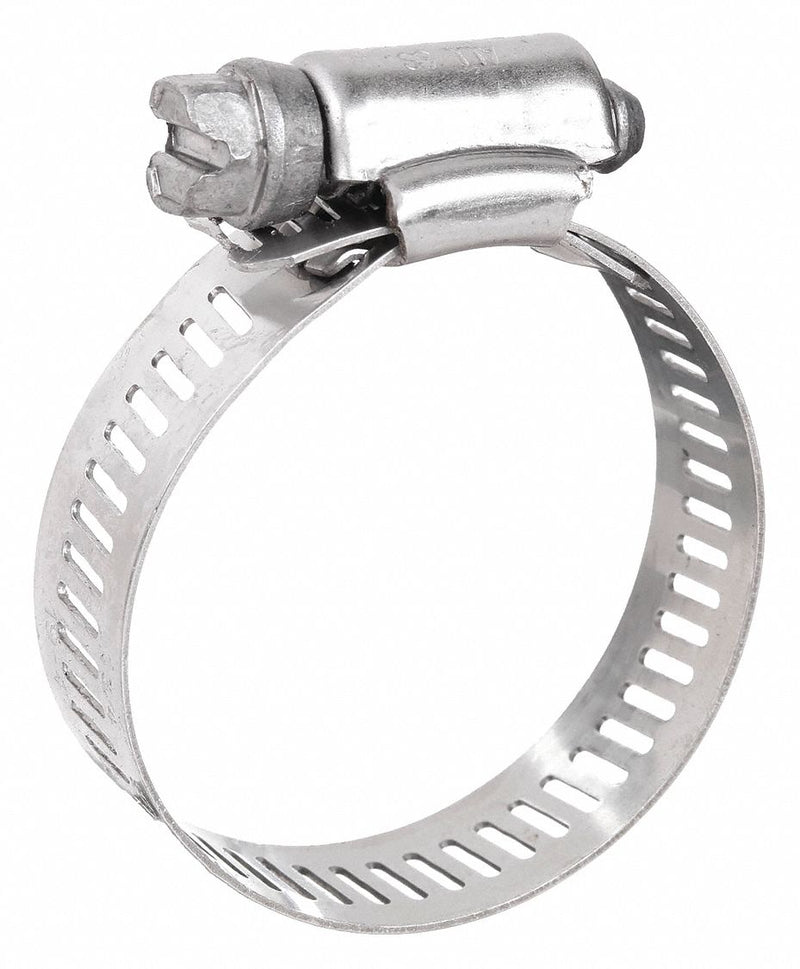

Approved Vendor 6824 Worm Gear Hose Clamp, 201 Stainless Steel, Perforated Band, 1 in – 2 in Clamping Dia, 10 PK

Approved Vendor 6824 Worm Gear Hose Clamp, 201 Stainless Steel, Perforated Band, 1 in – 2 in Clamping Dia, 10 PK

UPC: | Harmonization / Schedule B : 7326.90.8688

Country of Origin: United States | Shipping Weight: 0.55 lbs

$24.94 - $24.94
$24.94
$24.94 - $24.94
$24.94

Worm Gear Hose Clamp, Band Material Stainless Steel, Band Material Grade 201, Band Thickness 0.022 in, Band Type Perforated, Band Width 9/16 in, Clamp Maximum Inside Diameter 2 in, Clamp Minimum Inside Diameter 1 in, Fastener Housing Material 201 Stainless Steel, For Maximum Outside Diameter 2 in, Grade Heavy Duty, Maximum Operating Temperature 500 Degrees F, SAE Number 24, Screw Material Stainless Steel, Screw Material Grade 410, Clamp Type Worm Gear Clamp

Max. Clamp Dia. 2 in
Min. Clamp Dia. 1 in
Hose Clamp Band Width 9/16 in
Thickness 0.022 in
Metric Dia. Max. 51 mm
Screw Size 5/16 in
Metric Dia. Min. 25 mm
Band Thickness 0.022 in
Hex Size 5/16 in
Band Length 0.56 in
Clamp Minimum Inside Diameter 1 in
For Maximum Outside Diameter 2 in
Clamp Maximum Inside Diameter 2 in
Band Width 9/16 in
Clamp Type Worm Gear Clamp
Hose Clamp Band Material 200 Stainless Steel
Hose Clamp Housing Material 200 Stainless Steel
Hose Clamp Product Group Worm Gear Hose Clamp
Hose Clamp Screw Material 410 Stainless Steel
SAE Number 24
Hose Clamp Install Torque 35 in-lb
Band Slots Rectangular
Standards IATF16949, ISO 14001, ISO 9001
Maximum Operating Temperature 500 Degrees F
Fastener Housing Material 201 Stainless Steel
Series Hy-Gear
Drive Type Slotted Hex
For Environment Industrial
Installation Torque 30 in-lb
Band Material Grade 201
Band Material Stainless Steel
Band Type Perforated
System of Measurement Inch
Screw Material Stainless Steel
Grade Heavy Duty
Screw Material Grade 410
Country of Origin United States
