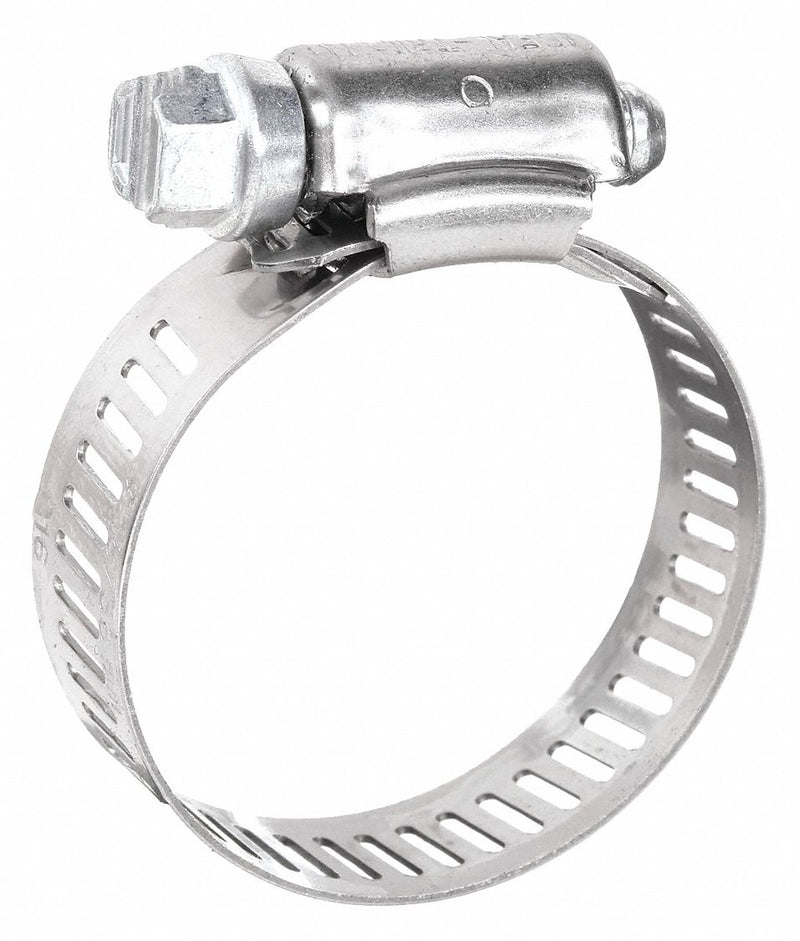

Approved Vendor 5740 Worm Gear Hose Clamp, 201 Stainless Steel, Perforated Band, 1 in – 3 in Clamping Dia, 10 PK

Approved Vendor 5740 Worm Gear Hose Clamp, 201 Stainless Steel, Perforated Band, 1 in – 3 in Clamping Dia, 10 PK

UPC: | Harmonization / Schedule B : 7326.90.8688

Country of Origin: Mexico | Shipping Weight: 0.6 lbs

$16.82 - $16.82
$16.82
$16.82 - $16.82
$16.82

Worm Gear Hose Clamp, Band Material Stainless Steel, Band Material Grade 201, Band Thickness 0.022 in, Band Type Perforated, Band Width 1/2 in, Clamp Maximum Inside Diameter 3 in, Clamp Minimum Inside Diameter 1 in, Fastener Housing Material 201 Stainless Steel, For Maximum Outside Diameter 3 in, Grade General Purpose, Maximum Operating Temperature 500 Degrees F, SAE Number 40, Screw Material Steel, Screw Material Finish Zinc-Plated, Clamp Type Worm Gear Clamp, Drive Type Slotted Hex

Max. Clamp Dia. 3 in
Min. Clamp Dia. 1 in
Hose Clamp Band Width 1/2 in
Thickness 0.022 in
Metric Dia. Max. 76 mm
Screw Size 5/16 in
Metric Dia. Min. 26 mm
Clamp Minimum Inside Diameter 1 in
Band Width 1/2 in
Band Length 0.5 in
Hex Size 5/16 in
Clamp Maximum Inside Diameter 3 in
For Maximum Outside Diameter 3 in
Band Thickness 0.022 in
Clamp Type Worm Gear Clamp
Hose Clamp Band Material 200 Stainless Steel
Hose Clamp Housing Material 200 Stainless Steel
Hose Clamp Product Group Worm Gear Hose Clamp
Hose Clamp Screw Material Zinc Plated Steel
SAE Number 40
Band Slots Rectangular
Hose Clamp Install Torque 30 in-lb
Standards IATF16949, ISO 14001, ISO 9001
Screw Material Steel
For Environment Automotive, Household, Industrial
System of Measurement Inch
Screw Material Finish Zinc-Plated
Installation Torque 35 in-lb
Series Hy-Gear
Drive Type Slotted Hex
Band Type Perforated
Fastener Housing Material 201 Stainless Steel
Maximum Operating Temperature 500 Degrees F
Band Material Stainless Steel
Band Material Grade 201
Grade General Purpose
Country of Origin Mexico
