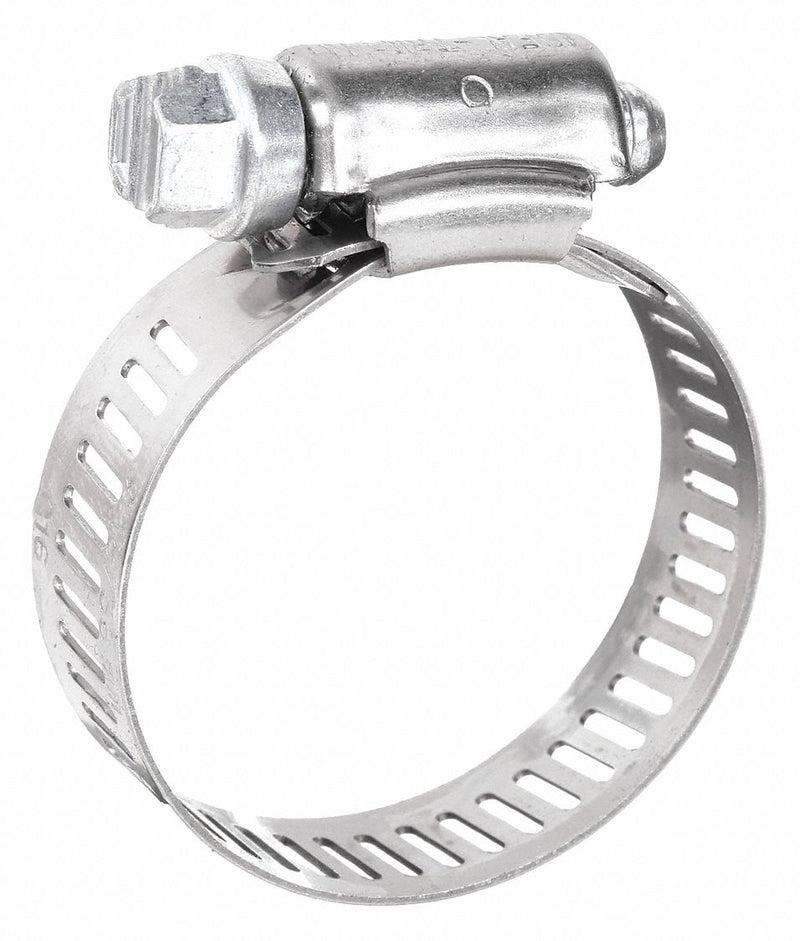

Approved Vendor 5712 Worm Gear Hose Clamp, 201 Stainless Steel, Perforated Band, 1/2 in – 1 1/4 in Clamping Dia, 10 PK

Approved Vendor 5712 Worm Gear Hose Clamp, 201 Stainless Steel, Perforated Band, 1/2 in – 1 1/4 in Clamping Dia, 10 PK

UPC: | Harmonization / Schedule B : 7326.90.8688

Country of Origin: United States | Shipping Weight: 0.4 lbs

$15.98 - $15.98
$15.98
$15.98 - $15.98
$15.98

Worm Gear Hose Clamp, Band Material Stainless Steel, Band Material Grade 201, Band Thickness 0.022 in, Band Type Perforated, Band Width 1/2 in, Clamp Maximum Inside Diameter 1 1/4 in, Clamp Minimum Inside Diameter 1/2 in, Fastener Housing Material 201 Stainless Steel, For Maximum Outside Diameter 1 1/4 in, Grade General Purpose, Maximum Operating Temperature 500 Degrees F, SAE Number 12, Screw Material Steel, Screw Material Finish Zinc-Plated, Clamp Type Worm Gear Clamp, Drive Type Slotted Hex

Max. Clamp Dia. 1 1/4 in
Min. Clamp Dia. 1/2 in
Hose Clamp Band Width 1/2 in
Thickness 0.022 in
Metric Dia. Max. 32 mm
Metric Dia. Min. 13 mm
Screw Size 5/16 in
For Maximum Outside Diameter 1 1/4 in
Clamp Minimum Inside Diameter 1/2 in
Clamp Maximum Inside Diameter 1 1/4 in
Hex Size 5/16 in
Band Thickness 0.022 in
Band Length 0.5 in
Band Width 1/2 in
Clamp Type Worm Gear Clamp
Hose Clamp Band Material 200 Stainless Steel
Hose Clamp Housing Material 200 Stainless Steel
Hose Clamp Product Group Worm Gear Hose Clamp
Hose Clamp Screw Material Zinc Plated Steel
SAE Number 12
Hose Clamp Install Torque 30 in-lb
Band Slots Rectangular
Standards IATF16949, ISO 14001, ISO 9001
System of Measurement Inch
Screw Material Finish Zinc-Plated
Maximum Operating Temperature 500 Degrees F
Drive Type Slotted Hex
Grade General Purpose
Installation Torque 35 in-lb
For Environment Automotive, Household, Industrial
Band Material Grade 201
Band Material Stainless Steel
Series Hy-Gear
Band Type Perforated
Screw Material Steel
Fastener Housing Material 201 Stainless Steel
Country of Origin United States
