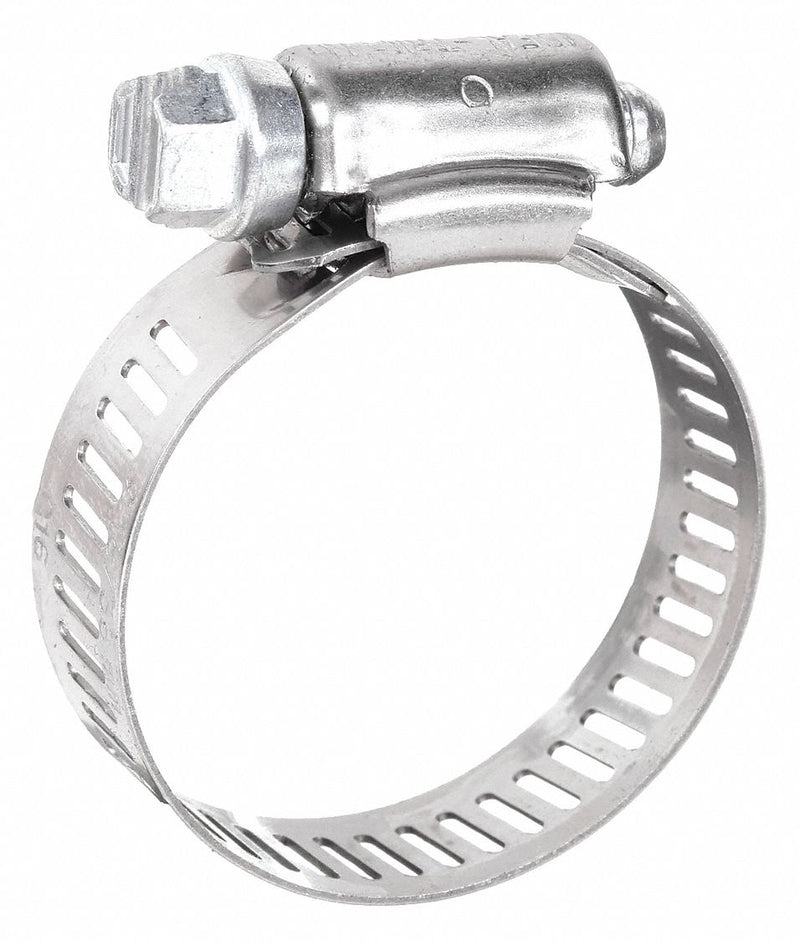

Approved Vendor 5708 Worm Gear Hose Clamp, 201 Stainless Steel, Perforated Band, 7/16 in – 1 in Clamping Dia, 10 PK

Approved Vendor 5708 Worm Gear Hose Clamp, 201 Stainless Steel, Perforated Band, 7/16 in – 1 in Clamping Dia, 10 PK

UPC: | Harmonization / Schedule B : 7326.90.8688

Country of Origin: United States | Shipping Weight: 0.4 lbs

$15.03 - $15.03
$15.03
$15.03 - $15.03
$15.03

Worm Gear Hose Clamp, Band Material Stainless Steel, Band Material Grade 201, Band Thickness 0.022 in, Band Type Perforated, Band Width 1/2 in, Clamp Maximum Inside Diameter 1 in, Clamp Minimum Inside Diameter 7/16 in, Fastener Housing Material 201 Stainless Steel, For Maximum Outside Diameter 1 in, Grade General Purpose, Maximum Operating Temperature 500 Degrees F, SAE Number 8, Screw Material Steel, Screw Material Finish Zinc-Plated, Clamp Type Worm Gear Clamp, Drive Type Slotted Hex

Max. Clamp Dia. 1 in
Min. Clamp Dia. 7/16 in
Hose Clamp Band Width 1/2 in
Metric Dia. Min. 11 mm
Thickness 0.022 in
Screw Size 5/16 in
Metric Dia. Max. 25.4 mm
Hex Size 5/16 in
Band Length 0.5 in
Band Width 1/2 in
Band Thickness 0.022 in
For Maximum Outside Diameter 1 in
Clamp Maximum Inside Diameter 1 in
Clamp Minimum Inside Diameter 7/16 in
Clamp Type Worm Gear Clamp
Hose Clamp Band Material 200 Stainless Steel
Hose Clamp Housing Material 200 Stainless Steel
Hose Clamp Product Group Worm Gear Hose Clamp
Hose Clamp Screw Material Zinc Plated Steel
SAE Number 8
Band Slots Rectangular
Hose Clamp Install Torque 30 in-lb
Standards IATF16949, ISO 14001, ISO 9001
For Environment Automotive, Household, Industrial
Maximum Operating Temperature 500 Degrees F
Installation Torque 35 in-lb
System of Measurement Inch
Screw Material Finish Zinc-Plated
Band Material Stainless Steel
Band Type Perforated
Fastener Housing Material 201 Stainless Steel
Screw Material Steel
Band Material Grade 201
Grade General Purpose
Drive Type Slotted Hex
Series Hy-Gear
Country of Origin United States
