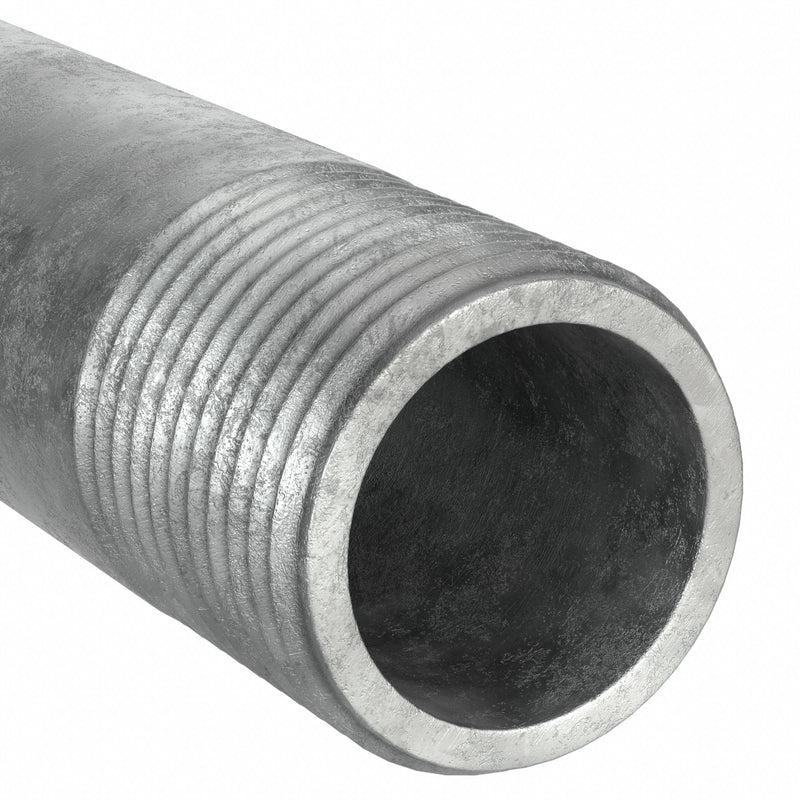

Approved Vendor 568-1200 Pipe, 2 in Nominal Pipe Size, 10 ft Lg, Schedule 40, Galvanized Steel, Threaded on Both Ends, Welded

Approved Vendor 568-1200 Pipe, 2 in Nominal Pipe Size, 10 ft Lg, Schedule 40, Galvanized Steel, Threaded on Both Ends, Welded

UPC: | Harmonization / Schedule B : 7306.30.5033

Country of Origin: | Shipping Weight: 36.551 lbs

$664.95 - $664.95
$664.95
$664.95 - $664.95
$664.95

Pipe, Application Air, Gas, Potable Water, Finish/Coating Galvanized, Fitting Compatibility Class 150, Gravity Flow No, Inside Diameter 2 1/16 in, Manufacture Location Globally Sourced, Material Steel, Material Grade Grade B, Maximum Operating Pressure 940 psi @ 650 Degrees F, Maximum Operating Temperature 600 Degrees F, Maximum Steam Pressure 940 psi @ 650 Degrees F, Metal Pipe Construction Welded, Minimum Operating Temperature -20 Degrees F, Nominal Pipe Size 2 in, Outside Diameter 2 3/8 in

Pipe Size - Nominal 2 in
Overall Pipe Length 10 ft
Outside Dia. (In.) 2.375 in
Pipe Size (Fittings) 2"
Inside Dia. (In.) 2.067 in
Wall Thickness (In.) 0.154 in
Pipe Size (Nominal) 2"
Nominal Pipe Size 2 in
Inside Diameter 2 1/16 in
Overall Length 10 ft
Wall Thickness 0.154 in
Outside Diameter 2 3/8 in
Wire Rope Length 10 ft
Length 10 ft
MFR # 568-1200
Zoro # G0766683
UPC # -
Country of Origin Multiple
Pipe Connection Type Threaded on Both Ends
Pipe Type Pipe
Material - Pipe Galvanized Carbon Steel
Pipe Schedule 40
Pipe Weld Type Electric Resistance Weld
Pipe Thread Type MNPT x MNPT
Max. Pressure 940 psi @ 650 Degrees F
Seamless/Welded Welded
Metal Detectable Yes
Basic Pipe Fitting Material Metal
Material (Pipe) Galvanized Steel
Standards ASME B1.20.1, ASTM A53, ASTM A733
Fitting Compatibility Class 150
Maximum Operating Pressure 940 psi @ 650 Degrees F
Side A Thread Type NPT
Maximum Steam Pressure 940 psi @ 650 Degrees F
Side A Connection Type Threaded
Metal Pipe Construction Welded
Side A Gender Male
Finish/Coating Galvanized
Material Grade Grade B
Material Steel
Gravity Flow No
Thread Configuration Threaded on Both Ends
Side B Thread Type NPT
Side B Connection Type Threaded
Maximum Operating Temperature 600 Degrees F
Minimum Operating Temperature -20 Degrees F
Application Air, Gases, Potable Water
Side B Gender Male
Schedule Schedule 40
Manufacture Location Globally Sourced
Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included
