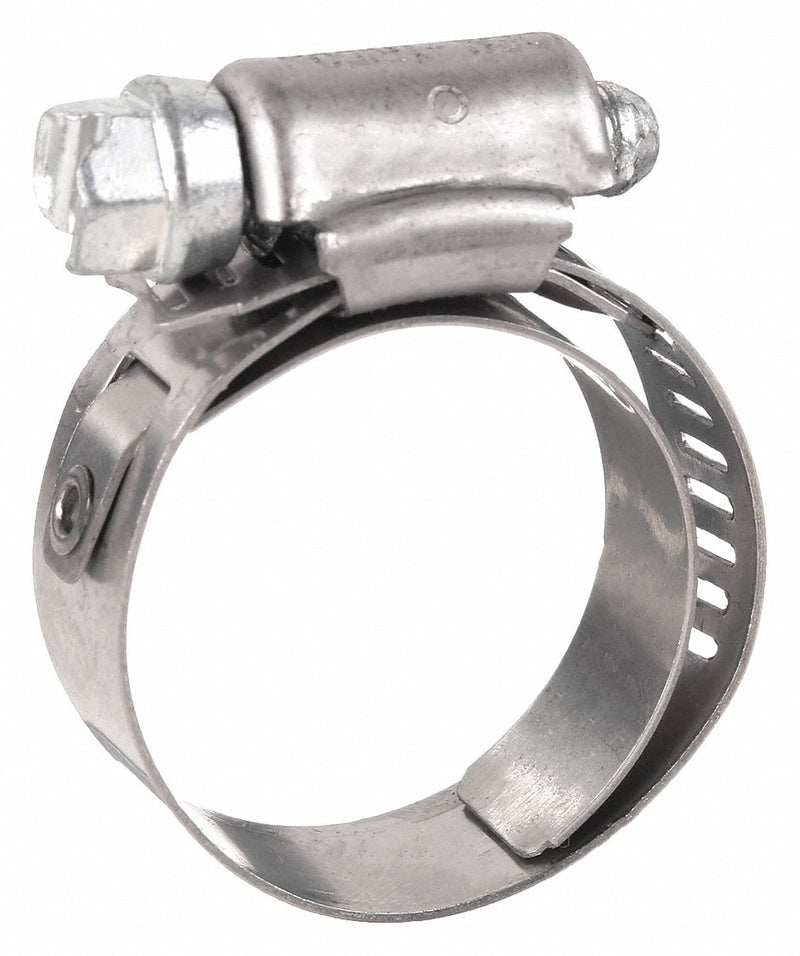

Approved Vendor 5340 Worm Gear Hose Clamp, 201 Stainless Steel, Lined Band, 2 1/16 in – 3 in Clamping Dia, 10 PK

Approved Vendor 5340 Worm Gear Hose Clamp, 201 Stainless Steel, Lined Band, 2 1/16 in – 3 in Clamping Dia, 10 PK

UPC: | Harmonization / Schedule B : 7326.90.8688

Country of Origin: Mexico | Shipping Weight: 0.75 lbs

$25.36 - $25.36
$25.36
$25.36 - $25.36
$25.36

Worm Gear Hose Clamp, Band Material Stainless Steel, Band Material Grade 201, Band Thickness 0.022 in, Band Type Lined, Band Width 1/2 in, Clamp Maximum Inside Diameter 3 in, Clamp Minimum Inside Diameter 2 1/16 in, Fastener Housing Material 201 Stainless Steel, For Maximum Outside Diameter 3 in, Grade General Purpose, Maximum Operating Temperature 500 Degrees F, SAE Number 40, Screw Material Steel, Screw Material Finish Zinc-Plated, Clamp Type Worm Gear Clamp, Drive Type Slotted Hex

Max. Clamp Dia. 3 in
Min. Clamp Dia. 2 1/16 in
Hose Clamp Band Width 1/2 in
Metric Dia. Max. 76.2 mm
Screw Size 5/16 in
Metric Dia. Min. 52.39 mm
Thickness 0.022 in
Band Thickness 0.022 in
Band Length 0.5 in
Clamp Maximum Inside Diameter 3 in
For Maximum Outside Diameter 3 in
Clamp Minimum Inside Diameter 2 1/16 in
Hex Size 5/16 in
Band Width 1/2 in
Clamp Type Worm Gear Clamp
Hose Clamp Band Material 200 Stainless Steel
Hose Clamp Housing Material 200 Stainless Steel
Hose Clamp Product Group Worm Gear Hose Clamp
Hose Clamp Screw Material Plated Carbon Steel
SAE Number 40
Band Slots Rectangular
Hose Clamp Install Torque 35 in-lb
Standards IATF16949, ISO 14001, ISO 9001
Band Material Grade 201
System of Measurement Inch
For Use On Silicone Rubber and Other Soft Hose Applications
Fastener Housing Material 201 Stainless Steel
Band Material Stainless Steel
Band Type Lined
Screw Material Finish Zinc-Plated
Series Lined 53-0
Maximum Operating Temperature 500 Degrees F
Grade General Purpose
Drive Type Slotted Hex
Screw Material Steel
Installation Torque 35 in-lb
Country of Origin Mexico
