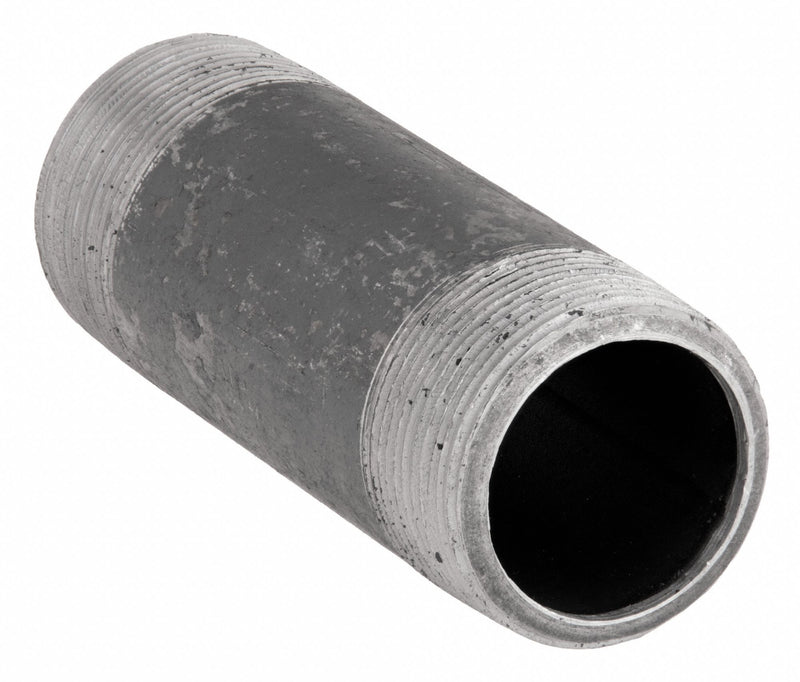

Approved Vendor 40808 Pipe Nipple, 1 1/2 in Nominal Pipe Size, Male NPT x Male NPT, 5 in Lg, Schedule 80, Welded

Approved Vendor 40808 Pipe Nipple, 1 1/2 in Nominal Pipe Size, Male NPT x Male NPT, 5 in Lg, Schedule 80, Welded

UPC: | Harmonization / Schedule B : 7307.99.5015

Country of Origin: Mexico | Shipping Weight: 1.515 lbs

$16.12 - $16.12
$16.12
$16.12 - $16.12
$16.12

Nipple, Application Air, Natural Gas, Non-Potable Water, Oil, Steam, Finish/Coating Black, Fitting Compatibility Class 300, Gravity Flow No, Inside Diameter 1 1/2 in, Manufacture Location Globally Sourced, Material Steel, Material Grade Grade B, Maximum Operating Pressure 1846 psi @ 650 Degrees F, Maximum Operating Temperature 600 Degrees F, Maximum Steam Pressure 1846 psi @ 650 Degrees F, Metal Pipe Construction Welded, Minimum Operating Temperature -20 Degrees F, Nominal Pipe Size 1 1/2 in

Pipe Size - Nominal 1 1/2 in
Overall Pipe Length 5 in
Pipe Size (Fittings) 1-1/2"
Pipe Size (Nominal) 1-1/2"
Inside Dia. 1 1/2 in
Outside Dia. 1 7/8 in
Wall Thickness 0.188 in
Outside Diameter 1 7/8 in
Overall Length 5 in
Nominal Pipe Size 1 1/2 in
Inside Diameter 1 1/2 in
Wire Rope Length 5 in
Length 5 in
Pipe Connection Type Threaded on Both Ends
Pipe Type Pipe Nipple
Material - Pipe Black Steel
Pipe Schedule 80
Pipe Weld Type Electric Resistance Weld
Pipe Thread Type MNPT x MNPT
Max. Pressure 1846 psi @ 650 Degrees F
Seamless/Welded Welded
Pipe Fitting Connection Type MNPT x MNPT
Metal Detectable Yes
Pipe Fitting Material Black Steel
Basic Pipe Fitting Shape Nipple
Max. Steam Pressure 1846 psi @ 650 Degrees F
Basic Pipe Fitting Material Metal
Pipe Fitting Schedule/Class Schedule 80
Standards ASTM A53 Type E Grade B
Specific Pipe Fitting Shape Nipple
Side A Thread Type NPT
Thread Type NPT
Manufacture Location Globally Sourced
Side B Connection Type Threaded
Material Grade Grade B
Side B Gender Male
Gravity Flow No
Side B Thread Type NPT
Fitting Compatibility Class 300
Maximum Steam Pressure 1,846 psi @ 650 Degrees F
Metal Pipe Construction Welded
Application Air, Gases, Non-Potable Water, Oils
Maximum Operating Pressure 1,846 psi @ 650 Degrees F
Side A Connection Type Threaded
Side A Gender Male
Thread Configuration Threaded on Both Ends
Minimum Operating Temperature -20 Degrees F
Finish/Coating Black
Schedule Schedule 80
Maximum Operating Temperature 600 Degrees F
Material Steel
Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included
Country of Origin Mexico
