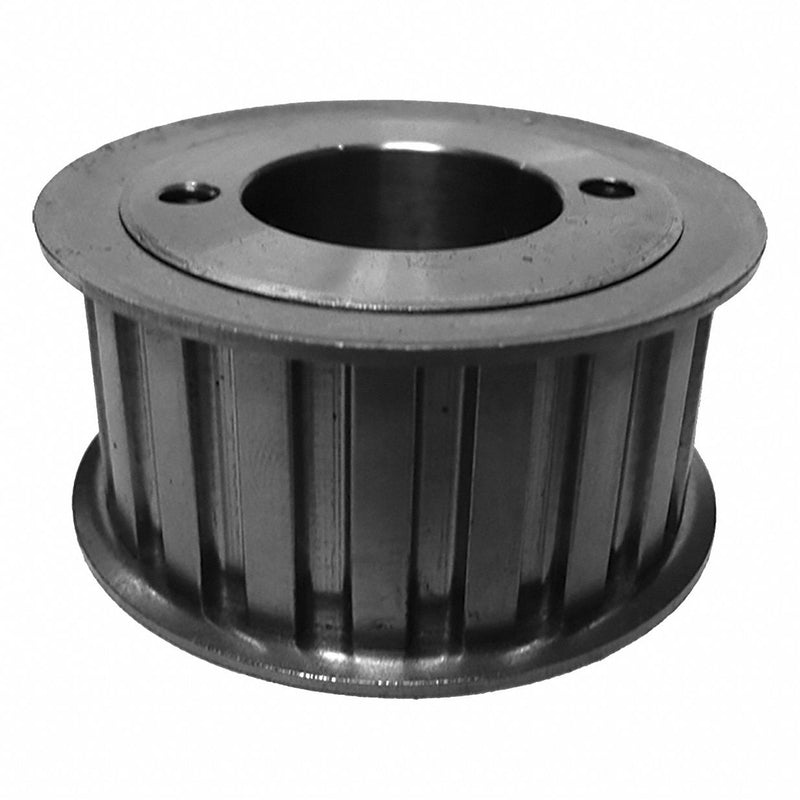

Approved Vendor 32LH100 Timing Belt Pulley, Trapezoidal, Bushed, For L Timing Belt Section, For 1 in Belt Wd

Approved Vendor 32LH100 Timing Belt Pulley, Trapezoidal, Bushed, For L Timing Belt Section, For 1 in Belt Wd

UPC: | Harmonization / Schedule B : 8483.50.9040

Country of Origin: United States | Shipping Weight: 2.524 lbs

$156.00 - $156.00
$156.00
$156.00 - $156.00
$156.00

Bushed L-section timing belt pulleys have a medium 0.375 in. pitch. The "L" designation indicates they are compatible with "light" trapezoidal timing belts. These pulleys need a bushing to mount to the drive shaft and adapt the bore to the shaft size. Bushings offer more clamping power to the drive shaft. They are used in light drive applications commonly found in outdoor equipment and sorting machines.

Tooth Profile Trapezoidal
Bore Type Bushed
For Timing Belt Section L
For Belt Width 1 in
Number of Teeth 32
Pitch 0.375 in
Material Cast Iron
Finish Black Oxide
Number of Flanges 2
Pitch Diameter 3.82 in
Outside Diameter 4.063 in
Face Width 1.25 in
Overall Width 1-7/16 in
For Bushing Type Split Taper
For Bushing Size H
Maximum Bore Diameter 1-1/2 in
Weight 2.52 lb
For Belt Type Timing Belt
Features Highly Flexible; Low Speed Compatible
Resistance Properties Chemical-Resistant; Oil-Resistant; Wear-Resistant
Standards REACH; RoHS
Minimum Bore Diameter 3/8 in
Material Fabrication Cast
Country of Origin USA
