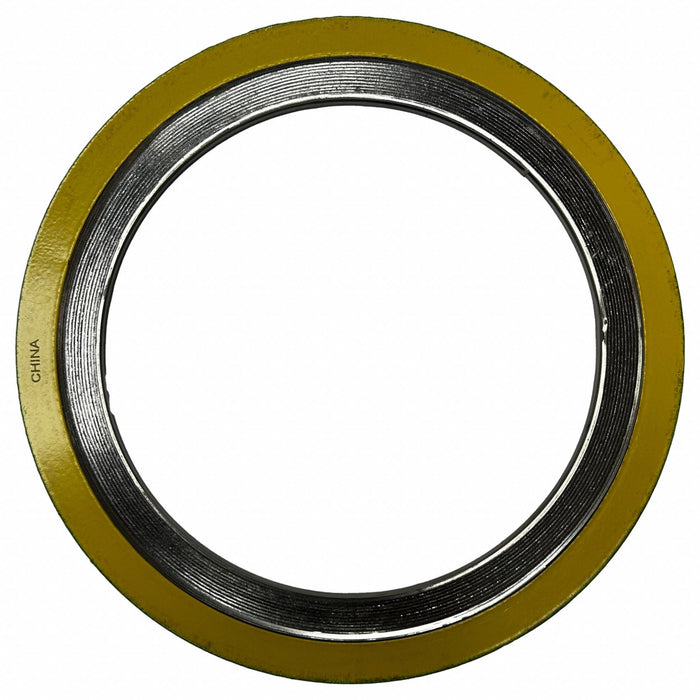

Approved Vendor 316-300-0500 Spiral Wound Flange Gasket

Approved Vendor 316-300-0500 Spiral Wound Flange Gasket, ANSI Class 300, 5 in Pipe, 316 SS Graphite Filler

UPC: | Harmonization / Schedule B : 8484.10.0000

Country of Origin: China | Shipping Weight: 0.65 lbs

$14.18 - $14.18
$14.18
$14.18 - $14.18
$14.18

Spiral Wound Flange Gasket, For Flange ANSI Class 300, For Pipe Size 5 in, Inside Diameter 6 3/16 in, Outside Diameter 8 1/2 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Green, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -100 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 316, Inner Ring Material None

Standards ASME B16.20
Outer Ring Material Carbon Steel
Spiral Winding Stainless Steel Grade 316
Spiral Winding Material Stainless Steel
For Flange ANSI Class 300
Outside Rim Color Green
Filler Material Graphite
FDA Approved No
Market Industrial
Rim Stripe Color Gray
For Piping System Industrial Process
Inner Ring Material None
For Flange Surface Type Flat Surface, Raised Surface
Maximum Operating Temperature 842 Degrees F
Minimum Operating Temperature -100 Degrees F
System of Measurement Inch
Restrictions This product is not intended for potable water applications (human consumption – drinking and cooking) and has not been designed to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable water applications. This item is for use, only, in non-potable (non-human consumption) water applications.
Country of Origin Multiple
