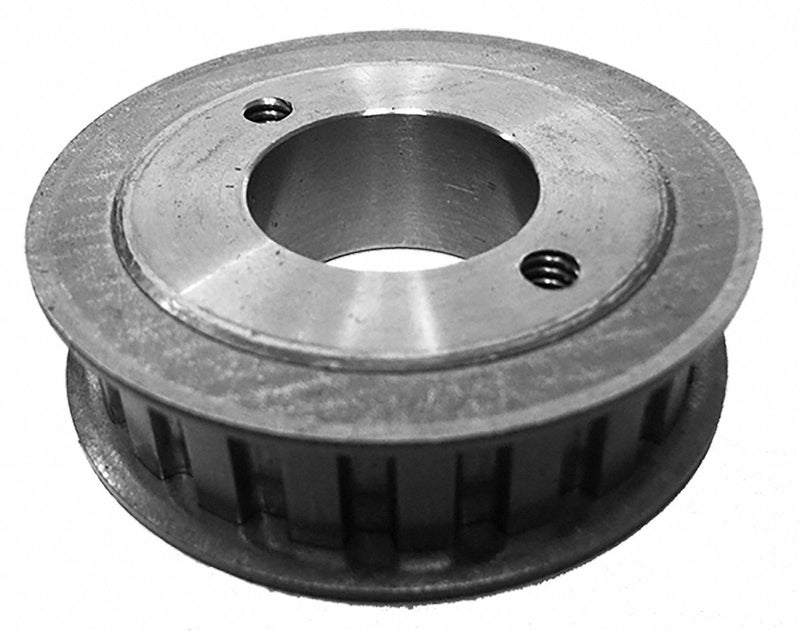

Approved Vendor 22LG050 Timing Belt Pulley, Trapezoidal, Bushed, For L Timing Belt Section, 22 Teeth, Steel

Approved Vendor 22LG050 Timing Belt Pulley, Trapezoidal, Bushed, For L Timing Belt Section, 22 Teeth, Steel

UPC: 195057625167 | Harmonization / Schedule B : 8483.50.9040

Country of Origin: United States | Shipping Weight: 0.89 lbs

$84.60 - $84.60
$84.60
$84.60 - $84.60
$84.60

Timing Belt Pulley, For Belt Series L, For Belt Width 1/2 in, For Bushing Size G, For Bushing Type Split Taper, For Use With Timing Belt, Material Steel, Maximum Bore Diameter 15/16 in, Minimum Bore Diameter 3/8 in, Number of Teeth 22, Outside Diameter 2.875 in, Pitch 0.375 in, Pitch Diameter 2.626 in, Face Width 0.75 in, Features Highly Flexible, Low Speed Compatible, Finish Black Oxide, For Belt Trade Size L, Number of Flanges 2, Overall Width 1 3/8 in

For Belt Trade Size L
Outside Diameter 2.875 in
Minimum Bore Diameter 3/8 in
Face Width 0.75 in
Overall Width 1 3/8 in
Pitch Diameter 2.626 in
For Belt Width 1/2 in
For Bushing Size G
Maximum Bore Diameter 15/16 in
Resistance Properties Chemical-Resistant, Oil-Resistant, Wear-Resistant
Weight 0.91 lb
Material Steel
For Bushing Type Split Taper
Number of Flanges 2
Pitch 0.375 in
For Belt Series L
For Use With Timing Belt
Tooth Shape Trapezoidal
Number of Teeth 22
Features Highly Flexible, Low Speed Compatible
Standards REACH, RoHS
Bore Type Bushed
System of Measurement Inch
Finish Black Oxide
Country of Origin United States
