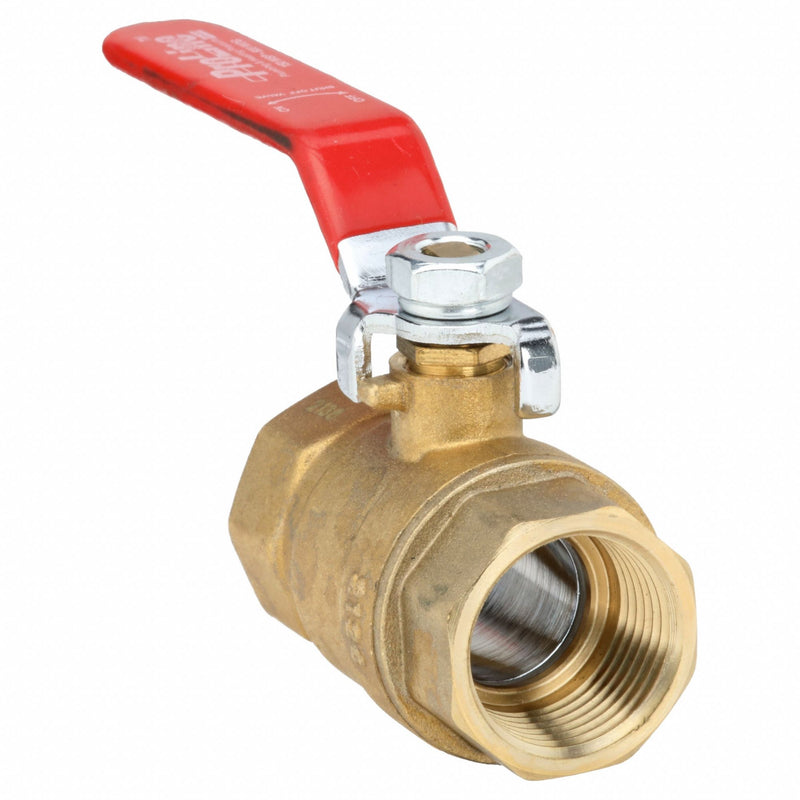

Approved Vendor 107-814 Brass Ball Valve 3/4 in

Approved Vendor 107-814 Manual Two-Way Ball Valve, 3/4 in, Brass, Straight, FIP x FIP, Full Port Ball Port

UPC: | Harmonization / Schedule B : 8481.80.1085

Country of Origin: China | Shipping Weight: 0.7 lbs

$36.02 - $36.02
$36.02
$36.02 - $36.02
$36.02

Brass ball valves have one inlet and one outlet port, are corrosion resistant and suitable for use with oil and compressed gas. They're used in commercial and industrial applications, and they open and close with a handle.

For Media Combustible Gases, Steam, Water
Body Material Brass
Valve Construction Two-Piece
Valve Body Style Straight
Ball Port Style Full Port
Nominal Valve Size 3/4 in
Connection Type - Side 1 IPS
Connection Gender - Side 1 Female
Connection Size - Side 1 3/4 in
Connection Type - Side 2 IPS
Connection Gender - Side 2 Female
Connection Size - Side 2 3/4 in
Max. Pressure (CWP) 600 psi
Max. Pressure (Steam) 600 psi
Standards ASTM
Vacuum Service Rating -29.92 in Hg
Coefficient of Volume (Cv) 21.417
Handle Lever
Handle Material PVC, Steel
Handle Color Red
Ball Material Chrome-Plated Brass
Seat Material PTFE
Seal Material PTFE
Stem Material Brass
Stem Type Blowout Resistant
Media Temp. Range -20 °F to 300 °F
Vented Ball Valve Non-Vented
Overall Length 4.61 in
Manufacturer Warranty 1 yr
