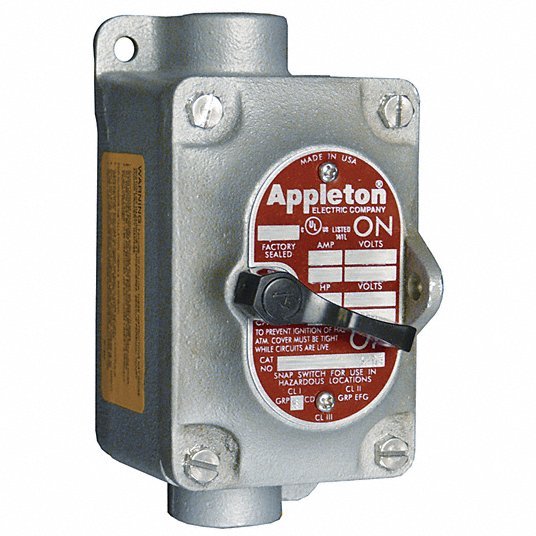

Appleton EDSC2129 Tumbler Switch, EDSC Series, 1 Gang, 1-Pole

Appleton EDSC2129 Tumbler Switch, EDSC Series, 1 Gang, 1-Pole

UPC: 781381697316 | Harmonization / Schedule B : 8536.50.9065

Country of Origin: Mexico | Shipping Weight: 10.3 lbs

$866.54 - $866.54
$866.54
$866.54 - $866.54
$866.54
Tumbler Switch, Front Operated, Series EDSC, Number of Gangs 1, Switch Type 1-Pole, Amps 20 A, Voltage 120 to 277V AC, HP 1 hp @ 120V AC, 2 hp @ 240V AC, Hub Style Feed-Thru, Hub Size 3/4 in, Mounting Mounting Holes, Legend Markings On/Off, Special Features Corrosion Resistant, Pad Lockable in the On or Off Position, NEMA Rating 7C, 7D, 9E, 9F, 9G, Standards UL 1203, UL 894
Item Tumbler Switch
Series EDSC
Type of Operator Front Operated
Number of Gangs 1
Switch Type 1-Pole
Amps 20 A
Voltage 120 to 277V AC
HP 1 hp @ 120V AC, 2 hp @ 240V AC
Hub Style Feed-Thru
NEMA Rating 7C, 7D, 9E, 9F, 9G
Legend Markings On/Off
Safety Rating Class I, Division 1, Groups C, D; Class I, Division 2, Groups B, C, D; Class II, Division 1 & 2, Groups E, F, G; Class III
Standards UL 1203, UL 894
Special Features Corrosion Resistant, Pad Lockable in the On or Off Position
Body Material Malleable Iron
Mounting Mounting Holes
Package Quantity 1
