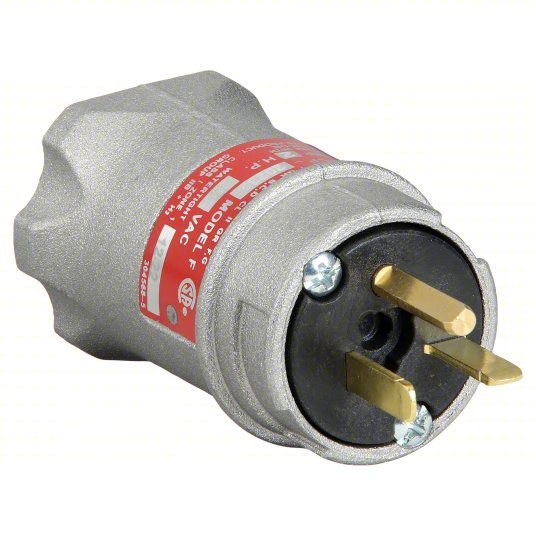

Appleton ECP-20232 Plug 6-20P, 20 A, 250V AC, 3 Poles, Metallic

UPC: 781381105873 | Harmonization (Schedule B): 8536.69.8000

SKU KV11Y364
Original price $331.88 - Original price $331.88
Original price
$331.88 - $331.88
Current price $331.88
Plug, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Horsepower Rating 2 hp, Housing Color Gray, IP Rating Not Rated, NEMA Plug Configuration 6-20P, Number of Blades 3, Number of Poles 3, Phase Single, Polarized No, Resistance Properties Corrosion Resistant, UL 94 Flammability Rating Not Rated, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.75 in, For Maximum Cable Diameter 0.639 in
Voltage 240V AC
NEMA Rating 3, 3R, 7BCD, 9FG
Amps 20 A
Standards UL Listed
HP 2 hp
Number of Wires 2
Number of Poles 3
NEMA Type 6-20P
Material Copper-Free Aluminum
Hz 60
Housing Material Metallic
Number of Blades 3
Grounding Grounded
Polarized No
Blade Material Brass
Connection Orientation Straight
Wire Connection Type Screw Terminals
For Environment Hazardous Location
Resistance Properties Corrosion Resistant
Market Commercial
NEMA Configuration 6-20
Shrouded No
IP Rating Not Rated
NEMA Plug Configuration 6-20P
Horsepower Rating 2 hp
Housing Color Gray
Grade General Use
Current Rating 20 A
Voltage Rating 250V AC
NEMA Enclosure Rating 4
Hazardous Location Specification Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, Class III, Div 1 and 2
Wiring Style Standard
Phase Single
Compatible with Series ECCL/ECC; ECH/ECHT; ECS; N1; N2
UL 94 Flammability Rating Not Rated
Insulation Material Thermoplastic
