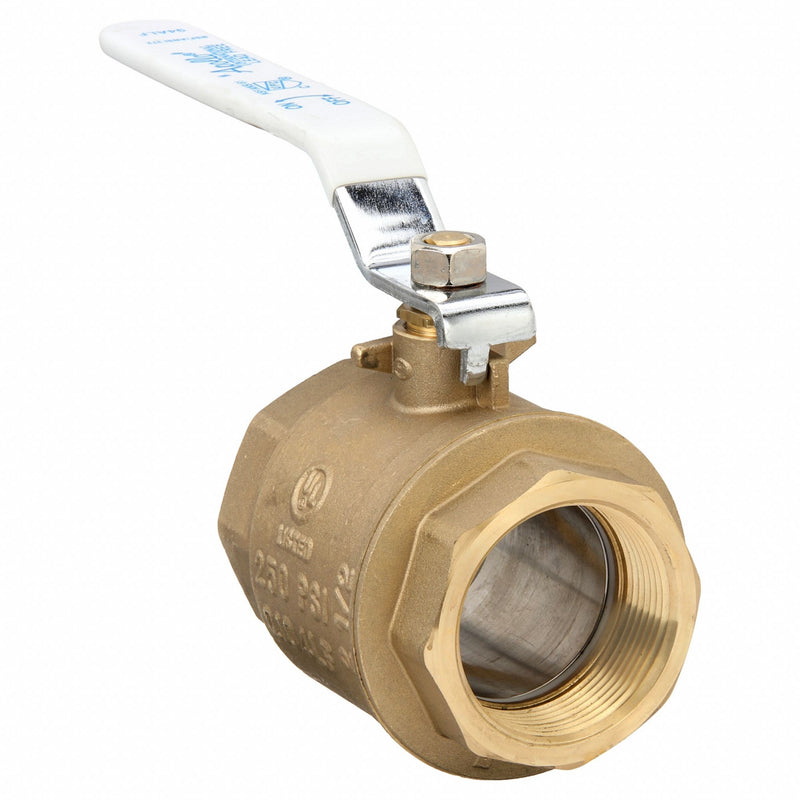

Apollo 94ALF-109-01A Manual Two-Way Ball Valve, 2 1/2 in, Brass, Straight, FNPT x FNPT, Full Port Ball Port

Apollo 94ALF-109-01A Manual Two-Way Ball Valve, 2 1/2 in, Brass, Straight, FNPT x FNPT, Full Port Ball Port

UPC: 670750968266 | Harmonization / Schedule B : 8481.80.1085

Country of Origin: China | Shipping Weight: 7.94 lbs

$305.14 - $305.14
$305.14
$305.14 - $305.14
$305.14

Manual Two-Way Ball Valve, Body Material Brass, For Media Water, Valve Construction Two-Piece, Nominal Valve Size 2 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Maximum Pressure - Operating 400 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Ball Material 316 Stainless Steel, Ball Port Style Full Port, Handle - Locking Non-Locking, Handle Type Lever

Pipe Size 2 1/2 in
Overall Length 5.38 in
Handle Height 4.65 in
Connection Size - Side 1 2 1/2 in
Connection Size - Side 2 2 1/2 in
Nominal Valve Size 2 1/2 in
Handle Length 8.7 in
Wire Rope Length 5.38 in
Length 5.38 in
MFR # 94ALF-109-01A
Zoro # G6157733
UPC # 670750968266
Country of Origin China
Ball Material 316 Stainless Steel
Body Style Inline
Ball Port Style Full Port
Valve Ways 2-Way
Valve Structure Two-Piece
For Media Water
Connection Type FNPT x FNPT
Stem Material Brass
Seat Material PTFE
Standards Material Quality C27451 (Lead-Free), NSF
Handle Material Plated Steel, PVC
Stem Type Blowout Resistant
Ball Valve Product Group Manual
Compliance MSS SP-110
Max. Pressure 400 PSI CWP
Temp. Range -20 Degrees to 366 Degrees F
Hose I.D. 2 1/2 in
Features Distinctive White Lead Free Handle Grip and Blue Lead Free Hang Tag
Body Material Brass
Handle Type Lever
Seal Material PTFE
Meets UL Flammable Gas and Liquid Standards UL 125, UL 1477, UL 842
Connection Type - Side 1 NPT
Connection Gender - Side 1 Female
Handle - Locking Non-Locking
Connection Type - Side 2 NPT
Operating Temperature - Maximum 400 Degrees F
Operating Temperature - Minimum 0 Degrees F
Cleaned and Bagged Not Cleaned and Bagged
Coefficient of Volume (Cv) 0.01
3-A Standard Compliance Not Rated
NSF Certifications for Food and Drinking Water NSF 61
Color - Valve Handle Yellow
Maximum Pressure - Combustible Gas Not Rated
Connection Gender - Side 2 Female
Maximum Pressure - Steam Not Rated
Valve Series 94A
Valve Construction Two-Piece
Valve Body Style Straight
Maximum Pressure - Operating 400 psi
Country of Origin China (subject to change)
