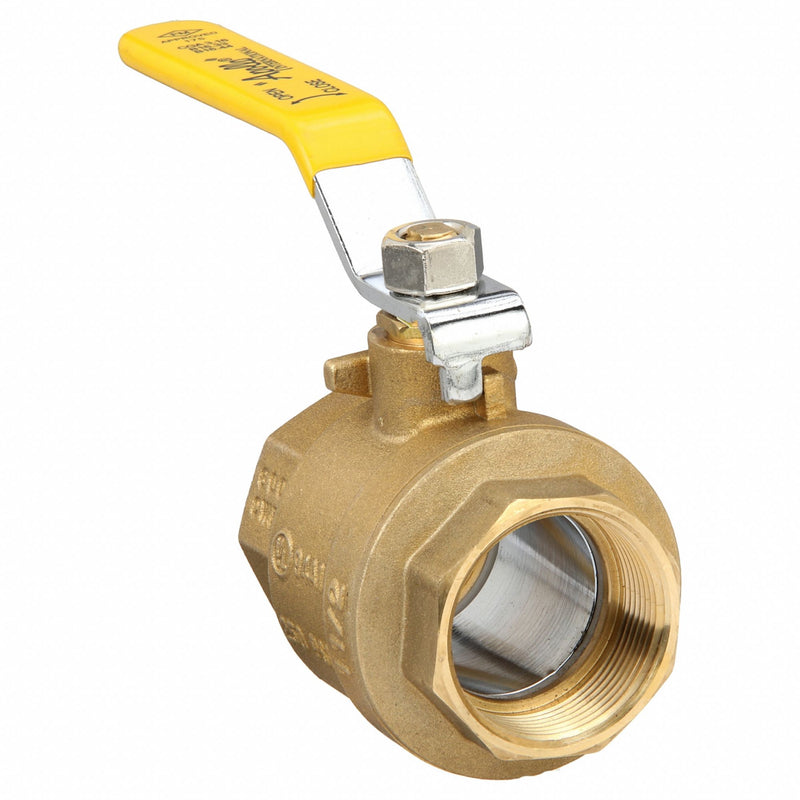

Apollo 94A10701 Manual Two-Way Ball Valve, 1 1/2 in, Brass, Straight, FNPT x FNPT, Full Port Ball Port, Lever

Apollo 94A10701 Manual Two-Way Ball Valve, 1 1/2 in, Brass, Straight, FNPT x FNPT, Full Port Ball Port, Lever

UPC: 670750823411 | Harmonization / Schedule B : 8481.80.1085

Country of Origin: China | Shipping Weight: 2.45 lbs

$77.07 - $77.07
$77.07
$77.07 - $77.07
$77.07

The APOLLO VALVES 94A10701 is a manual 2-way ball valve with a two-piece forged brass body and a full port design. It has 1-1/2 in female NPT connections on both ends for inline installation and is used for general flow control applications. The valve is listed for combustible gases and has a temperature range of 0 to 400 degrees F with a maximum pressure rating of 600 PSI CWP. Key features of the APOLLO VALVES 94A10701: Full port ball: Chrome plated brass ball with full port opening helps maintain flow through the valve. Body and construction: Forged brass inline body with two-piece valve structure. Connections: 1-1/2 in FNPT x FNPT ends with female NPT threads on both sides. Stem design: Blowout-resistant brass stem with adjustable stem packing nut. Seat and seals: PTFE seats and EPDM seals. Handle: Yellow lever handle made of PVC and steel; non-locking design. Testing: 100% factory tested. Standards: MSS SP-110; UL 125, UL 1477, UL 842; CSA; FM.

Pipe Size 1 1/2 in
Overall Length 3.66 in
Handle Height 3.37 in
Connection Size - Side 1 1 1/2 in
Handle Length 5.55 in
Nominal Valve Size 1 1/2 in
Connection Size - Side 2 1 1/2 in
Wire Rope Length 3.66 in
Length 3.66 in
MFR # 94A10701
Zoro # G2759041
UPC # 670750823411
Country of Origin China
Ball Material Chrome-Plated Brass
Body Style Inline
Ball Port Style Full Port
Valve Ways 2-Way
Valve Structure Two-Piece
For Media Combustible Gases
Connection Type FNPT x FNPT
Compliance MSS SP-110
Temp. Range 0 Degrees to 400 Degrees F
Handle Type Lever
Handle Material PVC, Steel
Stem Type Blowout Resistant
Features General Purpose
Standards CSA, FM
Stem Material Brass
Body Material Brass
Seat Material PTFE
Ball Valve Product Group Manual
Max. Pressure 600 PSI CWP
Seal Material EPDM
Type Two Piece
Connection Gender - Side 2 Female
Connection Gender - Side 1 Female
Operating Temperature - Maximum 400 Degrees F
Meets UL Flammable Gas and Liquid Standards UL 125, UL 1477, UL 842
Handle - Locking Non-Locking
Maximum Pressure - Combustible Gas Not Rated
Cleaned and Bagged Not Cleaned and Bagged
Connection Type - Side 1 NPT
3-A Standard Compliance Not Rated
Color - Valve Handle Yellow
Connection Type - Side 2 NPT
Operating Temperature - Minimum 0 Degrees F
Maximum Pressure - Steam Not Rated
Coefficient of Volume (Cv) 0
Valve Series 94A
Manufacturer Warranty 2 yr
Valve Construction Two-Piece
Maximum Pressure - Operating 600 psi
Valve Body Style Straight
Country of Origin China (subject to change)
