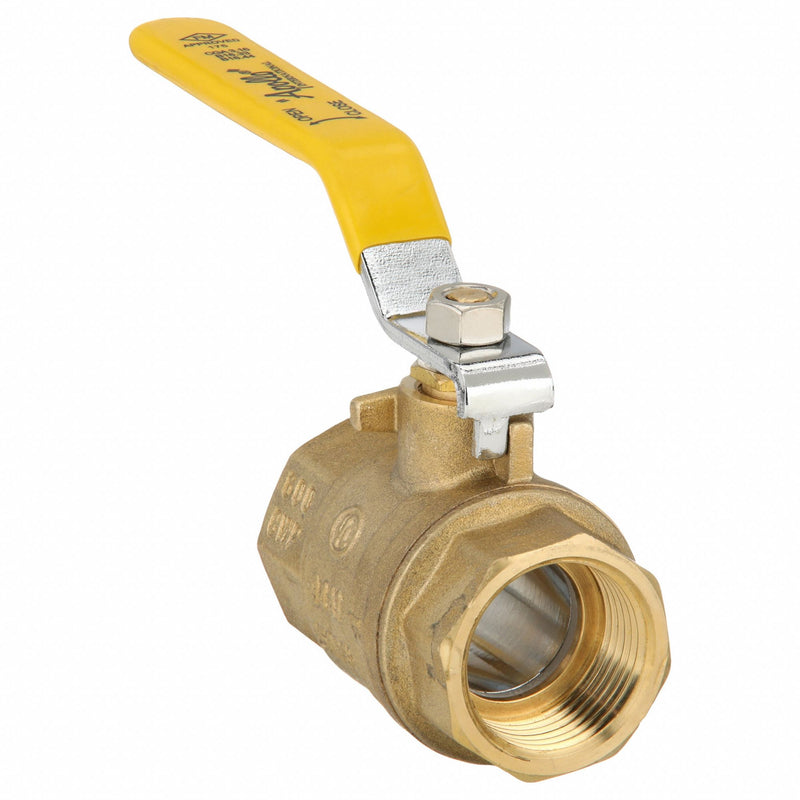

Apollo 94A10501 Manual Two-Way Ball Valve, 1 in, Brass, Straight, FNPT x FNPT, 600 psi Max. Pressure (CWP)

Apollo 94A10501 Manual Two-Way Ball Valve, 1 in, Brass, Straight, FNPT x FNPT, 600 psi Max. Pressure (CWP)

UPC: 670750823367 | Harmonization / Schedule B : 8481.80.1085

Country of Origin: China | Shipping Weight: 1.05 lbs

$33.66 - $33.66
$33.66
$33.66 - $33.66
$33.66

Manual Two-Way Ball Valve, Body Material Brass, For Media Combustible Gases, Valve Construction Two-Piece, Nominal Valve Size 1 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Non-Locking

Pipe Size 1 in
Overall Length 2.76 in
Connection Size - Side 2 1 in
Handle Height 2.58 in
Handle Length 4.57 in
Connection Size - Side 1 1 in
Nominal Valve Size 1 in
Wire Rope Length 2.76 in
Length 2.76 in
Ball Material Chrome-Plated Brass
Body Style Inline
Ball Port Style Full Port
Valve Ways 2-Way
Valve Structure Two-Piece
For Media Combustible Gases
Connection Type FNPT x FNPT
Seat Material PTFE
Standards CSA, FM
Handle Type Lever
Compliance MSS SP-110
Ball Valve Product Group Manual
Stem Type Blowout Resistant
Features 2-3/4 in L
Handle Material PVC, Steel
Body Material Brass
Stem Material Brass
Temp. Range 0 Degrees to 400 Degrees F
Max. Pressure 600 PSI CWP
Seal Material EPDM
Type Two Piece
Products By Industry General Approach
Handle - Locking Non-Locking
Cleaned and Bagged Not Cleaned and Bagged
Color - Valve Handle Yellow
Connection Type - Side 2 NPT
Operating Temperature - Maximum 400 Degrees F
Operating Temperature - Minimum 0 Degrees F
3-A Standard Compliance Not Rated
Meets UL Flammable Gas and Liquid Standards UL 125, UL 1477, UL 842
Connection Gender - Side 2 Female
Connection Gender - Side 1 Female
Maximum Pressure - Combustible Gas Not Rated
Maximum Pressure - Steam Not Rated
Coefficient of Volume (Cv) 0
Connection Type - Side 1 NPT
Valve Series 94A
Manufacturer Warranty 2 yr
Valve Body Style Straight
Valve Construction Two-Piece
Maximum Pressure - Operating 600 psi
Country of Origin China
