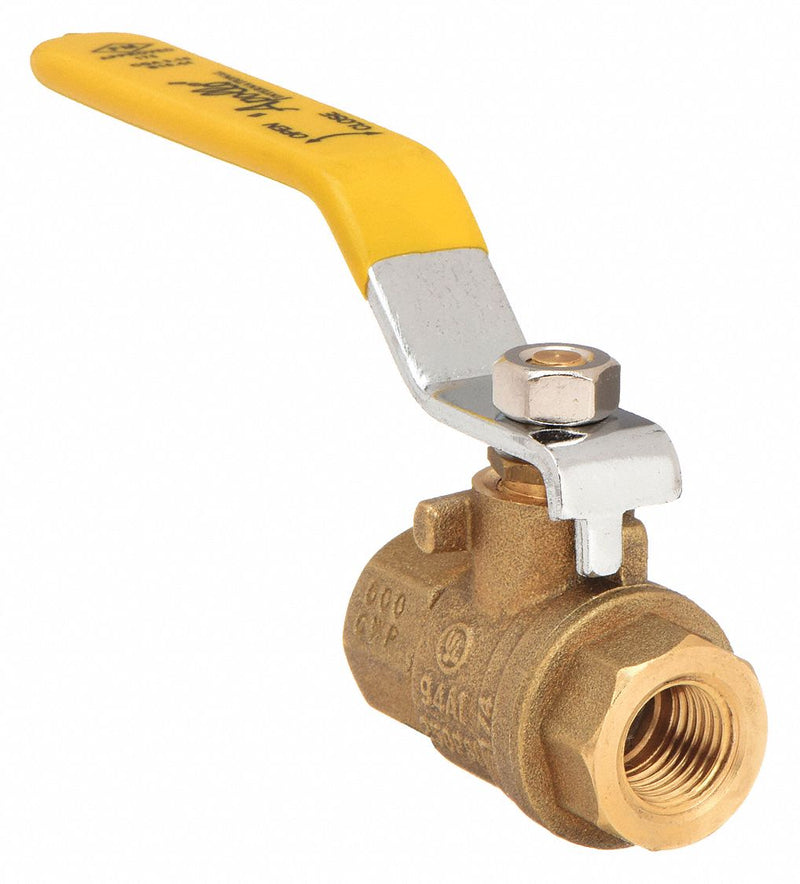

Apollo 94A10101 Manual Two-Way Ball Valve, 1/4 in, Brass, Straight, FNPT x FNPT, 600 psi Max. Pressure (CWP)

Apollo 94A10101 Manual Two-Way Ball Valve, 1/4 in, Brass, Straight, FNPT x FNPT, 600 psi Max. Pressure (CWP)

UPC: 670750823206 | Harmonization / Schedule B : 8481.80.1085

Country of Origin: China | Shipping Weight: 0.35 lbs

$14.71 - $14.71
$14.71
$14.71 - $14.71
$14.71

Manual Two-Way Ball Valve, Body Material Brass, For Media Combustible Gases, Valve Construction Two-Piece, Nominal Valve Size 1/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Maximum Pressure - Operating 600 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Non-Locking

Pipe Size 1/4 in
Overall Length 1.76 in
Connection Size - Side 1 1/4 in
Nominal Valve Size 1/4 in
Handle Length 3.58 in
Connection Size - Side 2 1/4 in
Handle Height 1.73 in
Wire Rope Length 1.76 in
Length 1.76 in
Ball Material Chrome-Plated Brass
Body Style Inline
Ball Port Style Full Port
Valve Ways 2-Way
Valve Structure Two-Piece
For Media Combustible Gases
Connection Type FNPT x FNPT
Temp. Range 0 Degrees to 400 Degrees F
Ball Valve Product Group Manual
Handle Type Lever
Handle Material PVC, Steel
Standards CSA, FM
Max. Pressure 600 PSI CWP
Compliance MSS SP-110
Stem Type Blowout Resistant
Seat Material PTFE
Features General Purpose
Body Material Brass
Stem Material Brass
Seal Material EPDM
Type Two Piece
Connection Type - Side 2 NPT
Meets UL Flammable Gas and Liquid Standards UL 125, UL 1477, UL 842
Connection Gender - Side 2 Female
Operating Temperature - Maximum 400 Degrees F
Connection Type - Side 1 NPT
Operating Temperature - Minimum 0 Degrees F
3-A Standard Compliance Not Rated
Cleaned and Bagged Not Cleaned and Bagged
Coefficient of Volume (Cv) 0
Handle - Locking Non-Locking
Maximum Pressure - Combustible Gas Not Rated
Connection Gender - Side 1 Female
Color - Valve Handle Yellow
Maximum Pressure - Steam Not Rated
Valve Series 94A
Valve Body Style Straight
Maximum Pressure - Operating 600 psi
Manufacturer Warranty 2 yr
Valve Construction Two-Piece
Country of Origin China
