| Body Material |
Carbon Steel |
| Body Style |
Inline |
| Port |
Standard |
| Seat Material |
PTFE |
| Max. Pressure |
2000 psi CWP |
| Ball Valve Basic Body Material |
Carbon Steel |
| Ball Valve Product Group |
Manual |
| Compliance |
ISO 9001 |
| Stem Material |
316 Stainless Steel |
| Ball Material |
Chrome Plated Carbon Steel |
| Stem Type |
Blowout Proof |
| Temp. Range |
20 Degrees to 500 Degrees F |
| Features |
Mounting Pad for Actuation |
| Handle Type |
Spring Return |
| Valve Structure |
2-Piece |
| Handle Material |
304 Stainless Steel with Vinyl Grip |

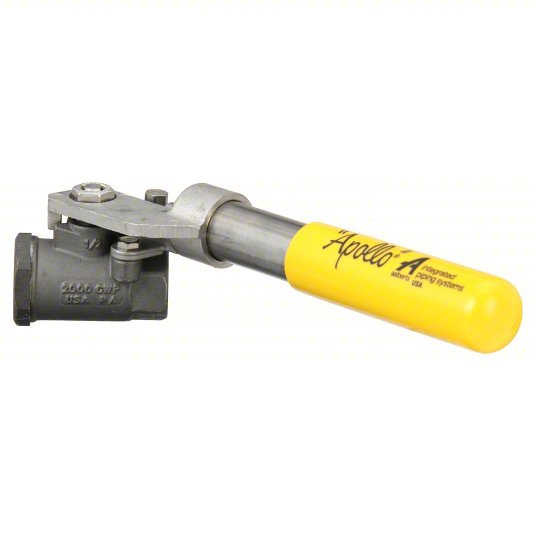

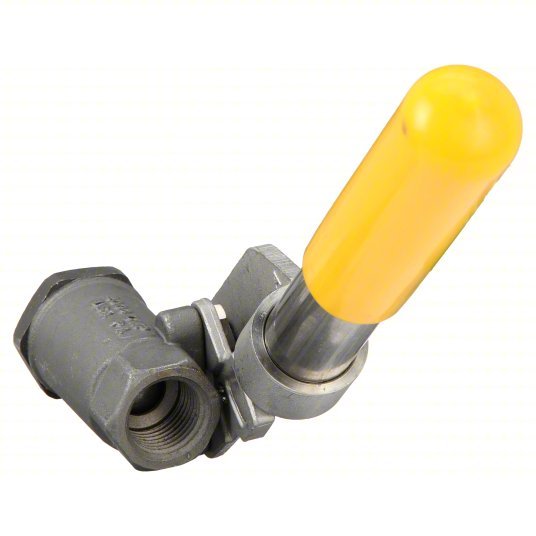

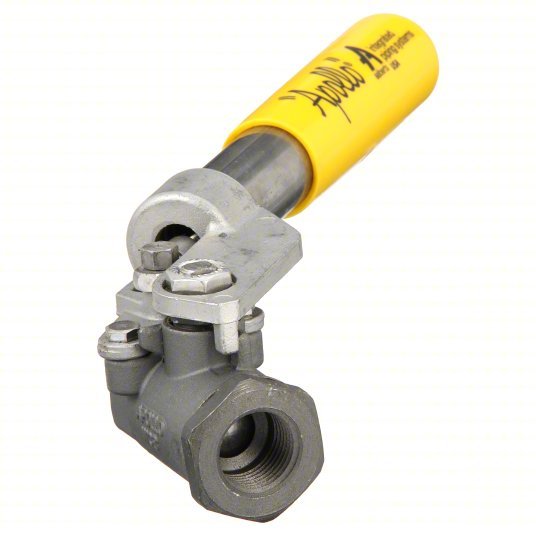

| Item |
Ball Valve |
| Standards |
MSS-SP-110, A108 |
| Body Seal Material |
PTFE |
| Connection Type |
FNPT x FNPT |
| Max. Steam Pressure |
150 PSI WSP |
| Seal Material |
PTFE |
| Type |
Two Piece |
| Connection |
FNPT |
| Material of Construction |
Carbon Steel |
| Sub-Category |
Steel Ball Valves |
| Handle - Locking |
Non-Locking |
| Valve Ways |
2-Way |
| Connection Type - Side 1 |
NPT |
| Maximum Pressure - Combustible Gas |
Not Rated |
| Valve Body Style |
Straight |
| Connection Gender - Side 1 |
Female |
| Manufacturer Warranty |
5 yr |
| Connection Type - Side 2 |
NPT |
| Color - Valve Handle |
Yellow |
| Coefficient of Volume (Cv) |
0.01 |
| For Media |
Steam |
| Included Mounting |
Actuator Mounting Pad |
| Maximum Pressure - Operating |
2,000 psi |
| Maximum Pressure - Steam |
150 psi |
| Pipe Schedule Compatibility |
Schedule 40 |
| 3-A Standard Compliance |
Not Rated |
| Operating Temperature - Maximum |
500 Degrees F |
| Ball Port Style |
Standard Port |
| Operating Temperature - Minimum |
20 Degrees F |
| Connection Gender - Side 2 |
Female |
| Vacuum Service Rating |
29 in Hg |
| Valve Construction |
Two-Piece |
