Apollo 6110001 Spring Check Valve Single Flow, Inline Ball Cone, Bronze, 3 in Pipe/Tube Size - KVM Tools Inc.KV1CKU5

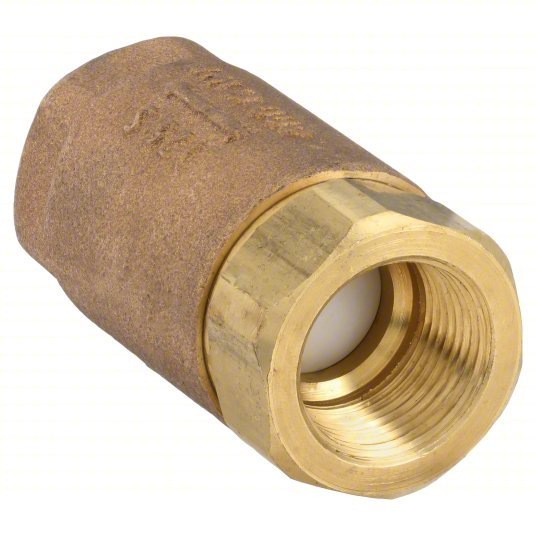

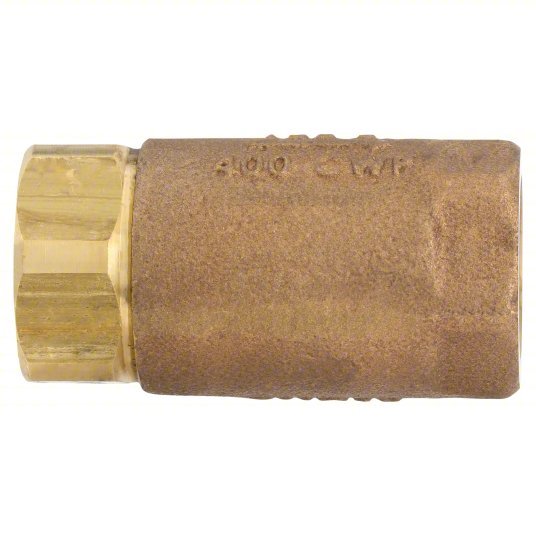

Apollo 6110001 Spring Check Valve Single Flow, Inline Ball Cone, Bronze, 3 in Pipe/Tube Size

UPC: 670750631757 | Harmonization / Schedule B : 8481.30.1090

Country of Origin: United States | Shipping Weight: 16.7 lbs

$772.49 - $772.49
$772.49
$772.49 - $772.49
$772.49

Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Inline Ball Cone, Body Material - Valves Bronze, Pipe or Tube Size 3 in, Connection Type FNPT x FNPT, Cracking Pressure 0.5 psi, Mounting Orientation Horizontal, Vertical, Seal Material EPDM, Max. Temp. - Valves 180 Degrees F, Min. Temp. - Valves 33 Degrees F, Max. Water Pressure - Valves 400 psi, Max. Steam Pressure - Valves 125 psi WSP, Seat Material RPTFE, Spring Material Stainless Steel

Connection FNPT
Body Material Cast Bronze
Mounting Orientation - Check Valves Horizontal, Vertical
Max. Temp. - Valves 180 Degrees F
Max. Temp. 406 Degrees F
Cracking Pressure 0.5 psi
Sub-Category Bronze
Flow Design Single
Max. Steam Pressure 125 psi SWP
Application - Valves General Purpose
Max. Water Pressure 400 psi Non Shock CWP
Cracking Pressure - Check Valves 0.5 psi
Spring Material - Check Valves Stainless Steel
Seal Material - Check Valves EPDM
Material of Construction Bronze
Body Material - Valves Bronze
Standards Canadian Reg. No: 0C11218.5C
Mechanism and Body Design Inline Ball Cone
Item Ball Cone Spring Check Valve
Min. Temp. - Valves 33 Degrees F
Connection Type - Check Valves FNPT x FNPT
Item - Check Valves Check Valve
Max. Water Pressure - Valves 400 psi
Spring Material Stainless Steel
Seat Material RPTFE
Seat Material - Check Valves RPTFE
Max. Pressure 400 psi @ 100 Degrees F, Steam: 125 psi @ 350 Degrees F
Mounting Position Vertical or Horizontal
Max. Steam Pressure - Valves 125 psi WSP
Seal Material EPDM
Mounting Orientation Horizontal, Vertical
