| Output Voltage |
120 V AC |
| Battery Type |
Lead-acid battery |
| Transfer Time |
6 ms |
| Color |
Black |
| Nominal Output Voltage |
120V |
| Output Connections |
8 |
| Output Power Capacity, VA |
1440 |
| Input Connection Type |
NEMA 5-15P |
| Approvals |
cULus, ENERGY STAR V2.0 (USA) |
| Product Orientation |
Tower |
| Surge Energy Rating |
680 |
| Interface Port(s) |
SmartSlot,USB |
| Topology |
Line interactive |
| Typical recharge time |
3 |
| Waveform type |
Sine wave |
| Mount Position |
Front |
| Load Capacity |
1440 VA/1000 W |
| Product Type |
Line-interactive UPS |
| Replaceable Battery |
Yes |
| Sound Emission (A-Weighted) |
45 dB(A) |
| Storage Temperature |
41°F (5°C) - 235.4°F (113°C) |
| Input Frequency |
60 Hz |
| Plug/Connector Type |
NEMA 5-15P |

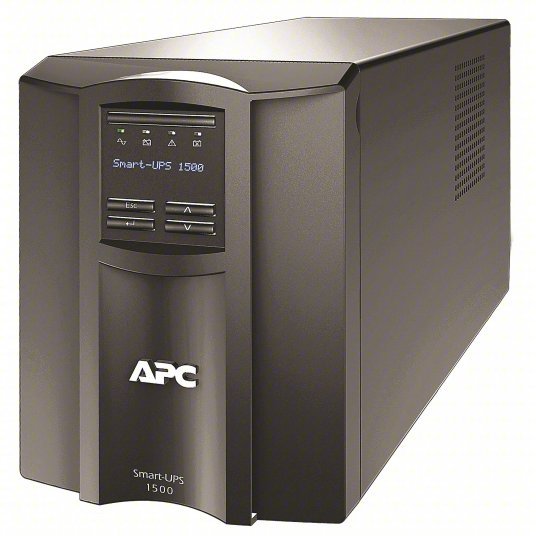

| Product Name |
Smart-UPS 1500VA LCD 120V with SmartConnect |
| Number of Batteries |
1 |
| Typical Battery Recharge Time |
3 Hour |
| Maximum Storage Elevation |
50000 ft |
| Product Color |
Black |
| Status Indicators |
LCD Status |
| Output Frequency |
60 Hz |
| Input Voltage Range |
82 V AC - 144 V AC, 75 V AC - 154 V AC |
| Hot Swappable |
Yes |
| Thermal Dissipation |
65.94 W |
| Storage Relative Humidity |
0% - 95% |
| Product Line |
Smart-UPS |
| Backup/Run Time (Full Load) |
7 Minute |
| Battery Chemistry |
Lead Acid |
| Receptacle Detail |
8 x NEMA 5-15R |
| Certifications & Standards |
cULus |
| Package Contents |
Smart-UPS 1500VA LCD 120V with SmartConnect , Installation guide, USB cable |
| Maximum Operating Temperature |
104°F (40°C) |
| Form Factor |
Tower |
| Application/Usage |
POS Terminal, Router, Switch, Network Device, Network Hub, Server |
| Alarm |
Configurable Delay, Low Battery |
| Maximum Operating Elevation |
10000 ft |
| Number of Battery & Surge Outlets |
8 |
| Battery Life |
5 Year |
