Anvil 0318901303 Round Cap Malleable Iron, 1/2 in Fitting Pipe Size, Female NPT, Class 3000 - KVM Tools Inc.KV12G114

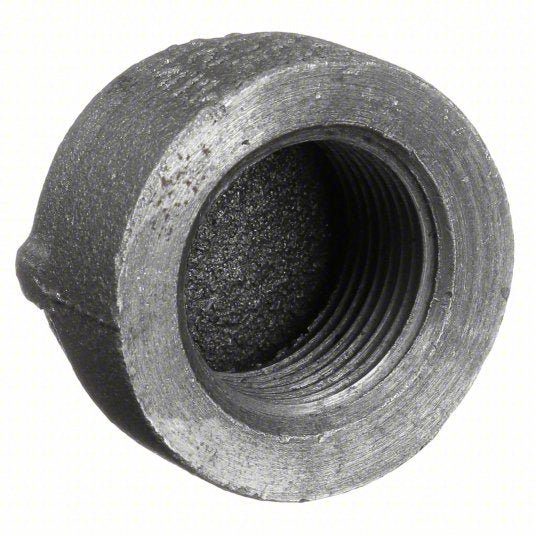

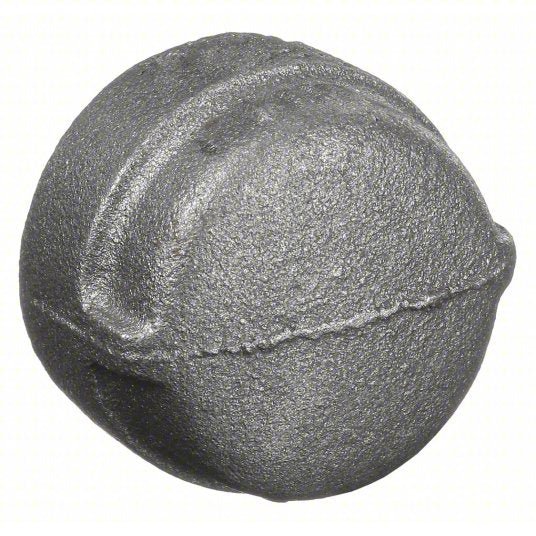

Anvil 0318901303 Round Cap Malleable Iron, 1/2 in Fitting Pipe Size, Female NPT, Class 3000

UPC: 069029103482 | Harmonization / Schedule B : 7307.19.9080

Country of Origin: United States | Shipping Weight: 0.25 lbs

$17.29 - $17.29
$17.29
$17.29 - $17.29
$17.29
Round Cap, 1/2 in Nominal Pipe Size, Malleable Iron, Class Class 3000, Female NPT, 2,000 psi @ 150 Degrees F Maximum Operating Pressure, 300 psi @ 550 Degrees F Max. Steam Pressure, -20 Degrees to 550 Degrees F, Plug Construction Solid, Includes Pre-Applied Thread Sealant No, Includes Seal No
Pipe Fitting Material Malleable Iron
Specific Fitting Shape Cap
Fitting Schedule/Class Class 300
Basic Pipe Fitting Material Metal
Fitting Connection Type FNPT
Basic Pipe Fitting Shape Cap
Item Cap
Standards UL Listed, FM Approved, AAR Approved, Meets ASME B16.3
Max. Pressure 2000 psi@150 Degrees F
Pipe Fitting Schedule/Class Class 300
Temp. Range -20 Degrees to 550 Degrees F
Pipe Fitting Connection Type Female NPT
Specific Pipe Fitting Shape Cap
Saturated Steam Pressure 300 psi @ 550 Degrees F
Plug Construction Solid
Max. Steam Pressure 300 psi @ 550 Degrees F
Class Class 3000
Class/Pressure Class 3000 2,000 psi @ 150 Degrees F
Pressure Level High Pressure (1000-3000 psi)
Fitting Shape Cap
Includes Pre-Applied Thread Sealant No
Connection Type Threaded
Includes Seal No
Maximum Operating Pressure 2,000 psi @ 150 Degrees F
Threading NPT
