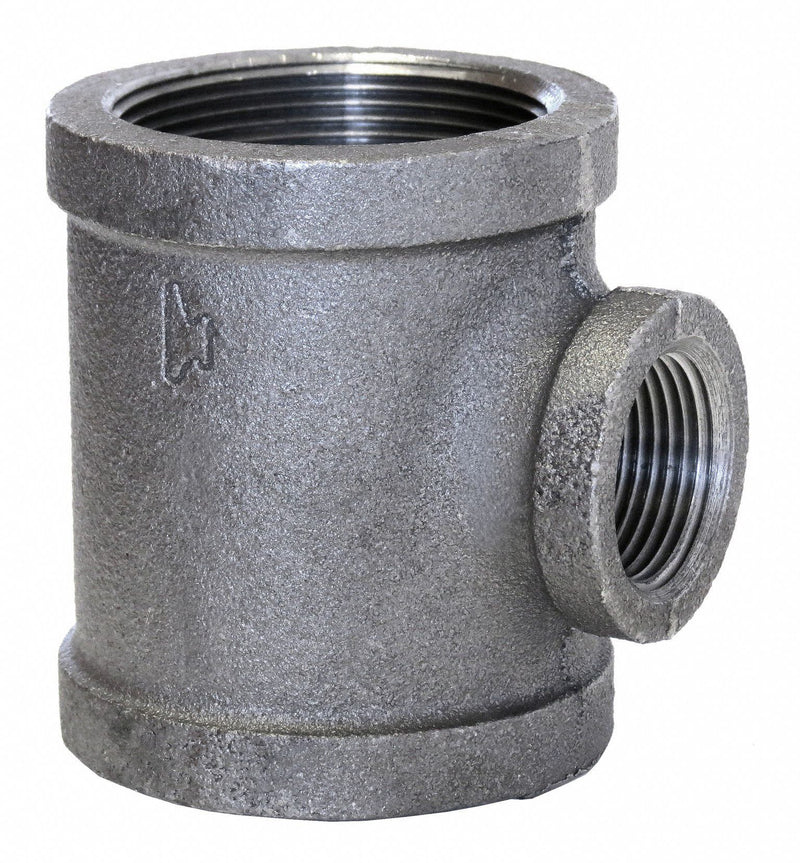

Anvil 0311055206 Metal Pipe Tee, Tee (run x run x branch), 300 psi @ 150°F, 3 in x 3 in x 1 in, Malleable Iron

Anvil 0311055206 Metal Pipe Tee, Tee (run x run x branch), 300 psi @ 150°F, 3 in x 3 in x 1 in, Malleable Iron

UPC: 690291030215 | Harmonization / Schedule B : 7307.19.9060

Country of Origin: United States | Shipping Weight: 12.46 lbs

$289.48 - $289.48
$289.48
$289.48 - $289.48
$289.48

Reducing Tee, Body Material Galvanized Malleable Iron, Class 300, Pipe Size 3 In. x 3 In. x 1 In., Connection Type NPT, Max. Pressure 1000 psi at 150 Degrees F WOG, Saturated Steam Pressure 300 psi, Outside Dia. 1 In., Number of Holes 3, Temp. Range -20 Degrees to 150 Degrees F, Standards ASTM A-197, ASME 16.3

Pipe Size - Pipe Fitting 3" x 3" x 1"
Pipe Size (Fittings) 3" x 3" x 1"
Pipe Size 3" x 3" x 1"
Fitting Side A Nominal Pipe Size 3 in
Fitting Side C Nominal Pipe Size 1 in
Fitting Side B Nominal Pipe Size 3 in
Overall Length 3 in
Wire Rope Length 3 in
Length 3 in
Specific Fitting Shape Reducing Tee
Fitting Schedule/Class Class 150
Basic Pipe Fitting Material Metal
Basic Pipe Fitting Shape Tee
Fitting Connection Type FNPT
Standards UL Listed, FM Approved, Meets ASME B16.3, ASTM A-197
Max. Pressure 300 psi @ 150 Degrees F WOG
Temp. Range -20 Degrees to 350 Degrees F
Pipe Fitting Schedule/Class Class 150
Specific Pipe Fitting Shape Reducing Tee
Saturated Steam Pressure 150 psi @ 350 Degrees F
Pipe Fitting Material Malleable Iron
Fitting Side C Type Threaded
Fitting Side A Gender Female
Fitting Side B Gender Female
Fitting Side B Type Threaded
Includes Pre-Applied Thread Sealant No
Fitting Side A Type Threaded
Fitting Side C Gender Female
Finish/Coating Galvanized
Color Silver
Includes Seal No
Class Class 150
Maximum Operating Pressure 300 psi @ 150 Degrees F
Application Air, Oils
Side B Thread Type NPT
Gravity Flow Pressure
Side 3 Thread Type NPT
Side A Thread Type NPT
Material Grade A197
Manufacture Location Made in USA
Country of Origin United States
