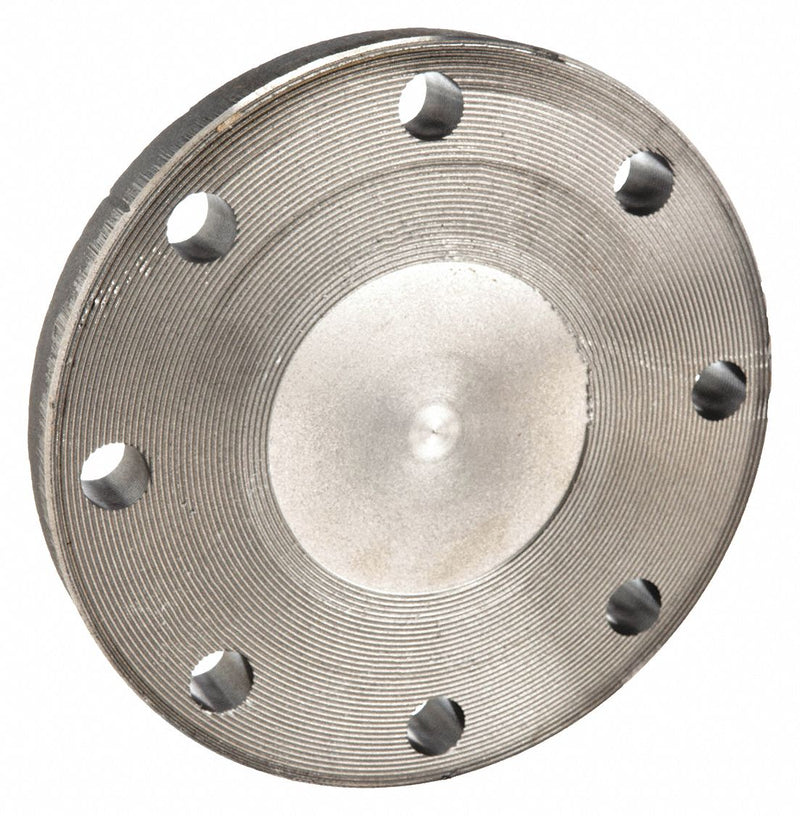

Anvil 0308017201 Metal Pipe Flange, 6 in, Female NPT Blind, Cast Iron, Flat Flange, Class 125, Black

Anvil 0308017201 Metal Pipe Flange, 6 in, Female NPT Blind, Cast Iron, Flat Flange, Class 125, Black

UPC: 690291021916 | Harmonization / Schedule B : 7307.11.0030

Country of Origin: United States | Shipping Weight: 23.6 lbs

$347.15 - $347.15
$347.15
$347.15 - $347.15
$347.15

Faced and Drilled Flange, 6 in Nominal Pipe Size, Flanged, 11 in Flange Outside Diameter, 11 in Overall Length, Cast Iron, Class Class 125, 175 psi Maximum Operating Pressure, -20 Degrees to 150 Degrees F, Number of Bolt Holes 8

Specific Fitting Shape Blind Flange
Fitting Connection Type Flanged
Pipe Fitting Material Cast Iron
Class Class 125
Standards UL: FM Approved: ASME B16.4
Number of Holes 8
Specific Pipe Fitting Shape Blind Flange
Basic Pipe Fitting Material Metal
Saturated Steam Pressure 125 psi
Pipe Fitting Connection Type Flanged
Pipe Fitting Schedule/Class Class 125
Max. Pressure 175 psi@-20 Degrees to 150 Degrees F
Temp. Range -20 Degrees to 150 Degrees F
Fitting Schedule/Class Class 125
Basic Pipe Fitting Shape Flange
Application Fire Protection, Non-Potable Water
Number of Bolt Holes 8
Maximum Operating Pressure 175 psi
Type Faced & Drilled Threaded
Country of Origin United States
