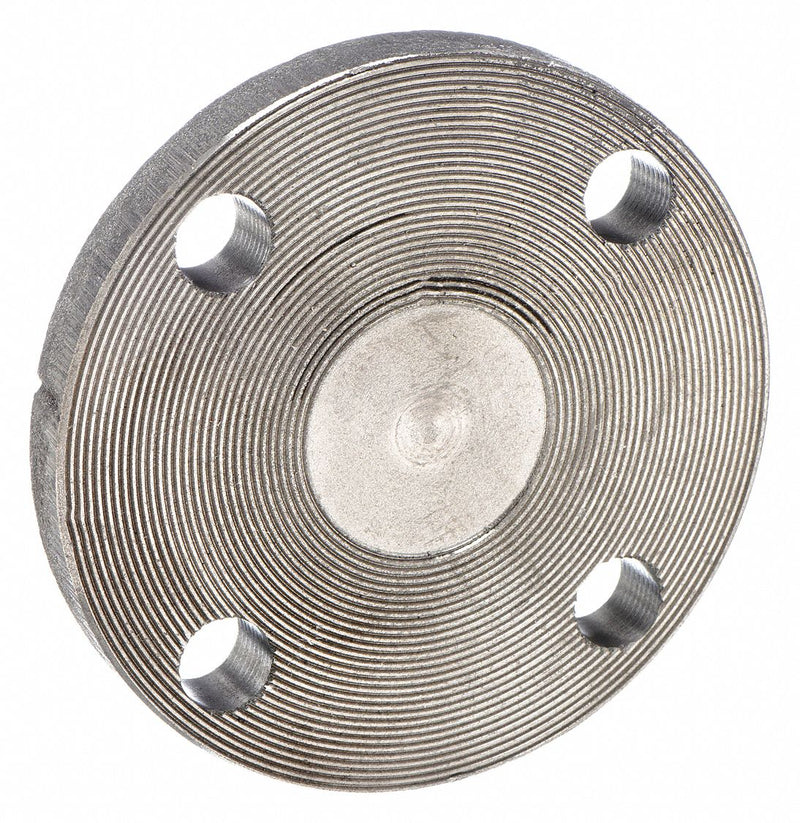

Anvil 0308015809 Metal Pipe Flange, 1 1/2 in, Female NPT Blind, Cast Iron, Flat Flange, Class 125, Black

Anvil 0308015809 Metal Pipe Flange, 1 1/2 in, Female NPT Blind, Cast Iron, Flat Flange, Class 125, Black

UPC: 690291021848 | Harmonization / Schedule B : 7307.11.0030

Country of Origin: United States | Shipping Weight: 3.04 lbs

$103.79 - $103.79
$103.79
$103.79 - $103.79
$103.79

Faced and Drilled Flange, 1 1/2 in Nominal Pipe Size, Flanged, 5 in Flange Outside Diameter, 5 in Overall Length, Cast Iron, Class Class 125, 175 psi Maximum Operating Pressure, -20 Degrees to 150 Degrees F, Number of Bolt Holes 4

Specific Fitting Shape Blind Flange
Fitting Connection Type Flanged
Pipe Fitting Material Cast Iron
Class Class 125
Standards UL: FM Approved: ASME B16.4
Fitting Schedule/Class Class 125
Pipe Fitting Connection Type Flanged
Pipe Fitting Schedule/Class Class 125
Specific Pipe Fitting Shape Blind Flange
Basic Pipe Fitting Shape Flange
Saturated Steam Pressure 125 psi
Basic Pipe Fitting Material Metal
Max. Pressure 175 psi@-20 Degrees to 150 Degrees F
Number of Holes 4
Temp. Range -20 Degrees to 150 Degrees F
Maximum Operating Pressure 175 psi
Number of Bolt Holes 4
Application Fire Protection, Non-Potable Water
Type Faced & Drilled Threaded
Country of Origin United States
