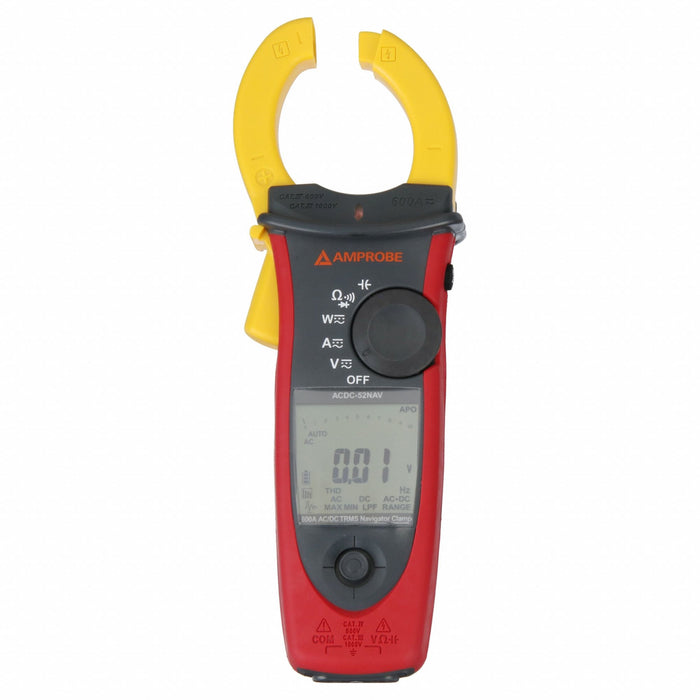

Amprobe ACDC-52NAV Clamp-On Power Meter, 600 kW, 600 A, CAT IV, 10,000 Counts, LCD

Amprobe ACDC-52NAV Clamp-On Power Meter, 600 kW, 600 A, CAT IV, 10,000 Counts, LCD

UPC: 095969556651 | Harmonization / Schedule B : 9030.33.3800

Country of Origin: Taiwan | Shipping Weight: 2.95 lbs

$778.37 - $778.37
$778.37
$778.37 - $778.37
$778.37

Clamp On Power Meter, Basic AC Current Accuracy +/-1.50 Percent, Basic AC Voltage Accuracy +/-1.00 Percent, Basic DC Current Accuracy +/-1.50 Percent, Basic DC Voltage Accuracy +/-0.70 Percent, Batteries Included Yes, Battery Chemistry Alkaline, Battery Size AA, Battery Voltage 1,000V; 100V, Calibration Certificate Included Traceable without Data, Calibration Frequency 20 Hz to 10 KHz, Capacitance Measurement Accuracy +/-1.90 Percent, Counts 10,000, Data Logging No, Display Type Backlit LCD

Max. Watts 600 kW
Max. AC Amps 600
Max. DC Volts 1,000
Safety Rating CAT IV
Power Source AA Batteries
Display LCD
Jaw Opening 1.45 in
Max. DC Amps 600
Max. AC Volts 1,000
Voltage Accuracy AC +/-1.0% Rdg +5 Digits, DC +/-0.7% Rdg +2 Digits
Current Accuracy +/-1.5% Rdg +5 Digits
Calibration Frequency 20 Hz to 10 KHz
Peak Capture Yes
True RMS Yes
Power Factor -1.00 to 1.00
Counts 10,000
Includes Carrying Case, Test Leads
Operating Temp. Range 32 Degrees to 122 Degrees F (0 Degrees C to 50 Degrees C)
Special Features Continuity Beeper Quickly Identifies Shorts and Opens, Inrush Current Measurement and Phase Rotation Indication for 3-Phase Motors, Low Pass Filter Allows Measurement of Voltage and Frequency of Variable Frequency Drives, Non-Contact Voltage Detection Enhances Safety
Max. Resistance 100 K Ohms
Power Accuracy +/-2.5% Rdg +5 Digits
Auto Power Off Yes
Data Hold Yes
Frequency Counter 20.0Hz to 10KHz
Diode Test No
Peak Hold Yes
